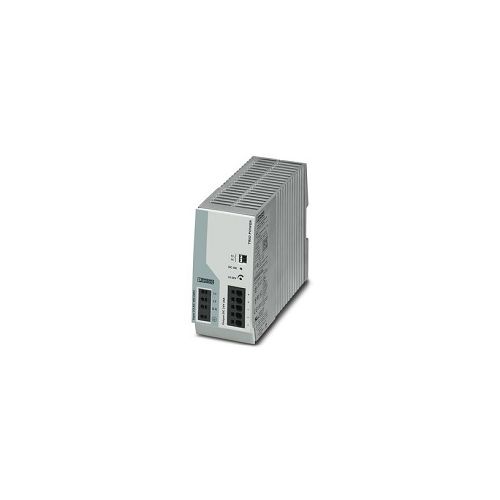

TRIO-PS-2G/3AC/24DC/20 | 2903155 | DIN rail PSU
Primary-switched TRIO POWER power supply with push-in connection for DIN rail mounting, input: 3-phase, output: 24 V DC/20 A
| Complete Electronics Part No. | 2903155 |
|---|---|
| Manufacturers Part No. | 2903155 |
| Nominal Input Voltage: | 3 x 400 V AC - 500 V AC |
| Nominal Output Voltage: | 24 V DC / 20 A |
Description
DIN rail power supply
Trio Power For 35mm DIN Rail
Nominal input range: 3 x 400 V ac to 500 V ac
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse 3.15A slow blow (Internal)
Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K)
Output range: 24 to 28 Vdc, (> 24 V DC, constant capacity restricted)
Output power: 480 W
Output current: 20A
Operating temperature: -25°C ... 70 °C (> 60°C Derating: 2.5 %/K)
Overvoltage protection
Short circuit protection
Connection method: Push In
LED signaling
Width: 65 mm
Height: 130 mm
Depth: 160 mm
Housing material: Aluminium
Ingress protection: IP20
Weight (excluding packing): 1,686 g
Part Number: 2903155
Customs tariff number: 85044095
GTIN: 4046356960861
Country of origin: China
