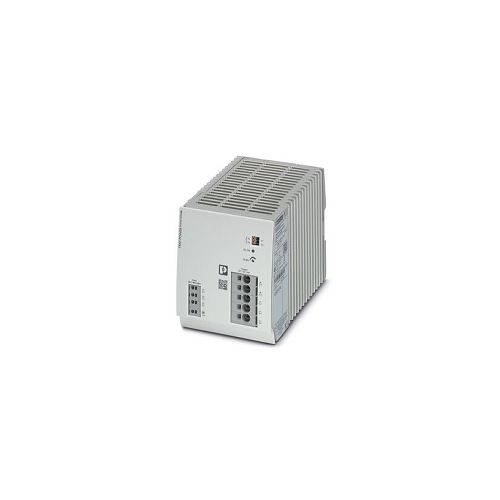

TRIO-PS-2G/3AC/72DC/14 | 1076188 | DIN rail PSU
Primary-switched TRIO power supply for DIN rail mounting, input: 3-phase, output: 72 V DC/14 A, dynamic boost, tool-free fast connection
| Complete Electronics Part No. | 1076188 |
|---|---|
| Manufacturers Part No. | 1076188 |
| Nominal Input Voltage: | 3 x 400 V AC - 500 V AC |
| Nominal Output Voltage: | 72 V DC / 14 A |
Description
DIN rail power supply
Trio Power For 35mm DIN Rail
Nominal input range: 3 x 400 V ac to 500 V ac
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse 6.3 A (Internal)
Recommended breaker for input protection: 10 A ... 16 A (Characteristics B, C, D, K)
Output range: 72 to 85 Vdc, (> 72 V DC, constant capacity restricted)
Output power: 1008 W
Output current: 14A
Operating temperature: -25°C ... 70 °C (> 60°C Derating: 2.5 %/K)
Overvoltage protection
Short circuit protection
Connection method: Push in
LED signaling
Width:110 mm
Height: 130 mm
Depth: 160 mm
Housing material: Aluminium / Polycarbonate
Ingress protection: IP20
Weight (excluding packing): 2,600 g
Part Number: 1076188
Customs tariff number: 85044095
GTIN: 4055626783918
Country of origin: China
