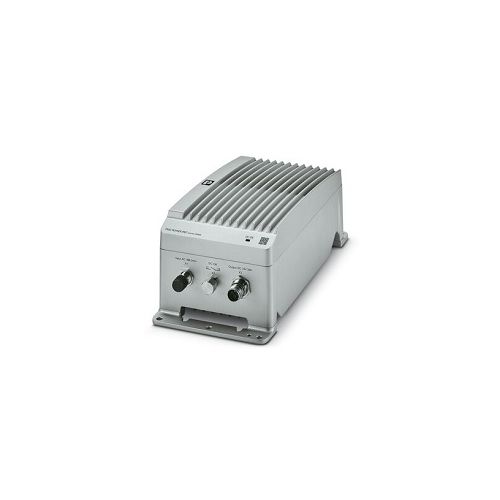

TRIO-PS-IP67/1AC/24DC/20 | 1039830 | Trio Power PSU
TRIO POWER primary-switched power supply in IP67 die-cast housing, input: 1-phase, output: 24 V DC / 20 A
| Complete Electronics Part No. | 1039830 |
|---|---|
| Manufacturers Part No. | 1039830 |
| Nominal Input Voltage: | 100v - 240v AC |
| IP Rating: | IP67 |
| Nominal Output Voltage: | 24 V DC / 20 A |
Description
TRIO-PS-IP67/1AC/24DC/20
Trio Power PSU For Wall Mount
Nominal input range: 100 V AC to 240 V AC / 110 V DC to 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: 10 A (Internal)
Recommended breaker for input protection: 10 A....16 A (Characteristics B, C, D, K)
Output Voltage: 24 V DC
Output power: 480 W
Output current: 20 A
Operating temperature: -25°C ... 70°C (Derating >60°C: 2.5 %/K)
Connection method: M17 circular connector
LED signaling
Width: 151 mm
Height: 304 mm
Depth: 120 mm
Housing material: Aluminum (AlMg3)
Ingress protection: IP67
Weight (excluding packing): 3,280 g
Part Number: 1039830
Customs tariff number: 85044095
GTIN: 4055626598703
Country of origin: China
