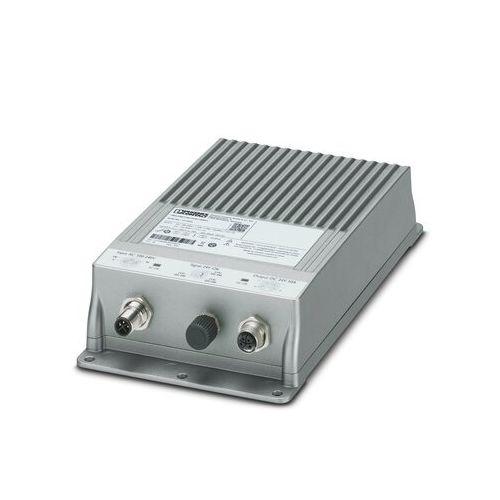

TRIO-PS67/1AC/24DC/10/M12 | 1111634 | Trio Power PSU
Primary-switched power supply unit TRIO POWER, M12 circular connector, Wall mounting, input: 1-phase, output: 24 V DC / 10 A
| Complete Electronics Part No. | 1111634 |
|---|---|
| Manufacturers Part No. | 1111634 |
| Nominal Input Voltage: | 100v - 240v AC |
| IP Rating: | IP67 |
| Nominal Output Voltage: | 24 V DC / 10 A |
Description
TRIO-PS67/1AC/24DC/10/M12
Trio Power PSU For Wall Mount
Nominal input range: 120 V AC to 240 V AC / 110 V DC to 250 V DC
Input AC Frequency range: 50 Hz ... 60 Hz
Input Fuse: 6.3 A (Internal)
Recommended breaker for input protection: 6 A....16 A (Characteristics B, C, D, K)
Output Voltage: 24 V DC
Output power: 240 W
Output current: 10 A
Transient surge protection; Varistor
Operating temperature: -25°C ... 70°C (Derating >60°C: 2.5 %/K)
Connection method: M12 circular connector
LED signaling
Width: 136 mm
Height: 240 mm
Depth: 53 mm
Housing material: Aluminum (AlMg3)
Ingress protection: IP67
Weight (excluding packing): 1,252 g
Part Number: 1111634
Customs tariff number: 85044095
GTIN: 4063151031824
Country of origin: China
