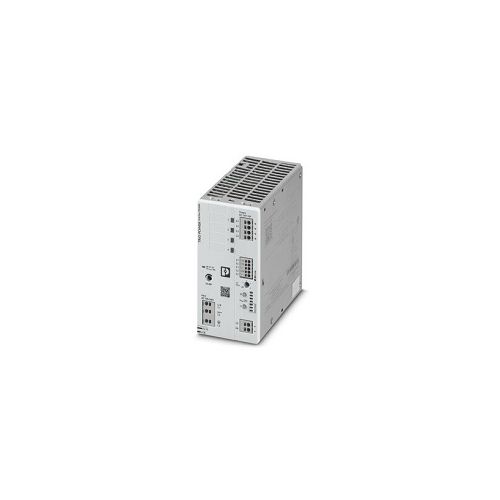

TRIO3-PS/1AC/24DC/10/4C/IOL | 1252696 | DIN rail PSU
Primary-switched power supply unit, TRIO POWER, 4-channel electronic circuit breaker, IO-Link, DIN rail mounting, input: 1-phase, output: 24 V DC / 10 A
| Complete Electronics Part No. | 1252696 |
|---|---|
| Manufacturers Part No. | 1252696 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 10 A |
Description
DIN rail power supply
Trio Power For 35mm DIN Rail
Nominal input range: 100 V ac to 240 V ac
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse 6.3A (Internal)
Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K)
Output range: 24 to 28 Vdc, (> 24 V DC, constant capacity restricted)
Output power: 240 W
Output current: 10A
Operating temperature: -25°C ... 70 °C (> 60°C Derating: 2.5 %/K)
Overvoltage protection
Short circuit protection
Connection method: Push In
LED signaling
Width: 68 mm
Height: 135 mm
Depth: 120 mm
Housing material: Polycarbonate
Ingress protection: IP20
Weight (excluding packing): 860 g
Part Number: 1252696
Customs tariff number: 85044095
GTIN: 4063151360863
Country of origin: China
