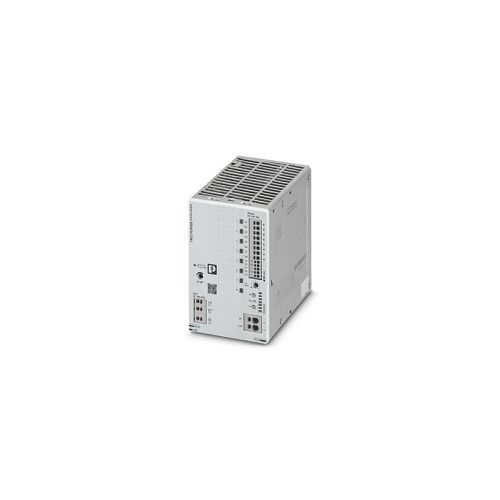

TRIO3-PS/1AC/24DC/20/8C/IOL | 1252697 | DIN rail PSU
Primary-switched power supply unit, 8-channel electronic circuit breaker, IO-Link, DIN rail input: 1-phase, output: 24 V DC / 20 A
| Complete Electronics Part No. | 1252697 |
|---|---|
| Manufacturers Part No. | 1252697 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 20 A |
Description
DIN rail power supply
Trio Power For 35mm DIN Rail
Nominal input range: 100 V ac to 240 V ac
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse 10A (Internal)
Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K)
Output range: 24 to 28 Vdc, (> 24 V DC, constant capacity restricted)
Output power: 480 W
Output current: 20A
Operating temperature: -25°C ... 70 °C (> 60°C Derating: 2.5 %/K)
Overvoltage protection
Short circuit protection
Connection method: Push In
LED signaling
Width: 88 mm
Height: 135 mm
Depth: 132 mm
Housing material: Aluminum / Polycarbonate
Ingress protection: IP20
Weight (excluding packing): 1,160 g
Part Number: 1252697
Customs tariff number: 85044095
GTIN: 4063151360078
Country of origin: China
