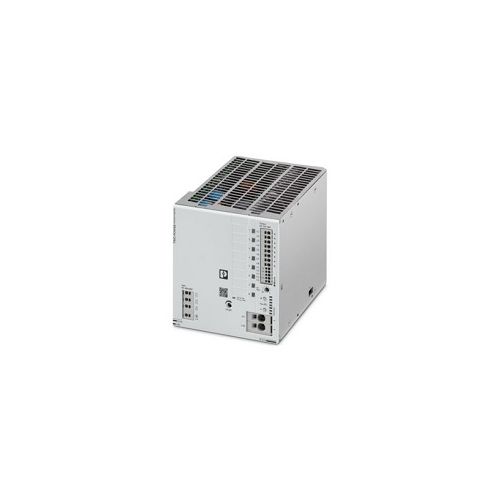

TRIO3-PS/3AC/24DC/40/8C/IOL | 1362792 | DIN rail PSU
Primary-switched power supply unit, TRIO POWER, 8-channel electronic circuit breaker, IO-Link, DIN rail mounting, input: 3-phase, output: 24 V DC / 40 A
| Complete Electronics Part No. | 1362792 |
|---|---|
| Manufacturers Part No. | 1362792 |
| Nominal Input Voltage: | 3 x 400 V AC - 500 V AC |
| Nominal Output Voltage: | 24 V DC / 40 A |
Description
DIN rail power supply
Trio Power For 35mm DIN Rail
Input Data
Nominal input range: 3 x 400 Vac to 500 Vac, 2x 400 V AC ... 500 V AC ±10 %
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse 6.3A (Internal)
Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K)
Output Data
Output range: 24 to 28 Vdc
Output power: 960 W
Output current: 40A
Functionality
Operating temperature: -25°C ... 70 °C (> 60°C Derating: 2.5 %/K)
Overvoltage protection
Short circuit protection
Connection method: Push In
LED signaling
Dimensions
Width: 128 mm
Height: 135 mm
Depth: 167 mm
Housing material: Polycarbonate / Aluminium
Ingress protection: IP20
Commercial Data
Weight (excluding packing): 12290 g
Part Number: 1362792
Customs tariff number: 85044095
GTIN: 4063151706821
Country of origin: China
