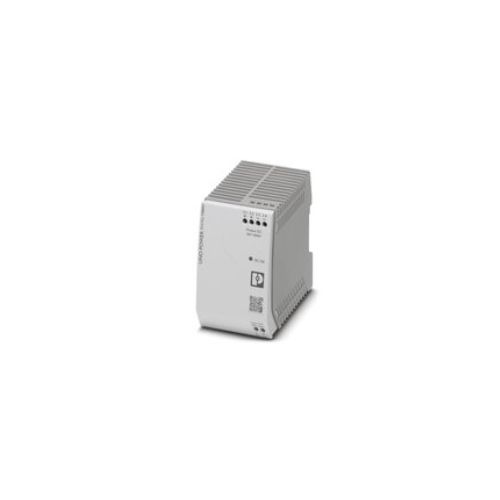

UNO-PS/1AC/24DC/100W/H | 1088851 | DIN rail PSU

Din RAIL Power Supply, Output 24 Vdc, 4.2A, 100W, Nominal input range 100 Vac to 240 Vac, Screw connection, LED indicator, UL approved

More Information
Complete Electronics Part No.	1088851
Manufacturers Part No.	1088851
Nominal Input Voltage:	100v - 240v AC
Nominal Output Voltage:	24 V DC / 4.2 A

Description

DIN rail power supply

Nominal input range:100 Vac to 240 Vac
Input AC Frequency range: 50 Hz ... 60 Hz
Transient surge protection; Varistor
Input Fuse 4A slow blow
Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K)
Output range: 24 Vdc
Output power: 100 W
Output current: 4A
Operating temperature: -25°C ... 70 °C (> 55°C Derating: 2.5 %/K)
Overvoltage protection
Short circuit protection
Connection method: Screw connection
LED signaling
Width: 55 mm
Height: 90 mm
Depth: 84 mm
Foot latch material: POM (Polyoxymethylene)
Housing material: Polycarbonate
Ingress protection: IP20
Weight (excluding packing): 340g
Customs tariff number: 85044030
GTIN: 4055626890661
Country of origin: Germany
