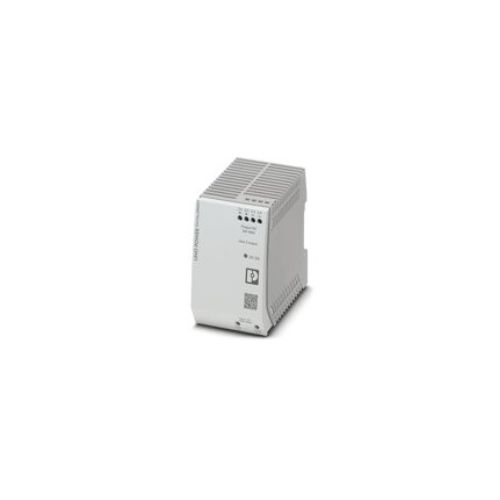

UNO-PS/2AC/24DC/90W/C2LPS | 2904371 | DIN rail PSU
Din RAIL Power Supply, 2 Phase Output 24 Vdc, 3.75A, 90W, Nominal input range 2 x 400 Vac to 500 Vac, Screw connection, LED indicator, UL approved
| Complete Electronics Part No. | 2904371 |
|---|---|
| Manufacturers Part No. | 2904371 |
| Nominal Input Voltage: | 2 x 400v - 500v AC |
| Nominal Output Voltage: | 24 V DC / 3.75 A |
Description
DIN rail power supply
For 35mm DIN Rail
- Nominal input range:2 x 400 Vac to 500 Vac
- Input AC Frequency range: 50 Hz ... 60 Hz
- 2 phase
- Transient surge protection; Varistor
- Input Fuse 2A slow blow
- Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K)
- Output range: 24 Vdc
- Output power: 100 W
- Output current: 3.75A
- Operating temperature: -25°C ... 70 °C (> 55°C Derating: 2.5 %/K)
- Overvoltage protection
- Short circuit protection
- Connection method: Screw connection
- LED signaling
- Width: 55 mm
- Height: 90 mm
- Depth: 84 mm
- Foot latch material: POM (Polyoxymethylene)
- Housing material: Polycarbonate
- Ingress protection: IP20
- Weight (excluding packing): 352.5g
- Customs tariff number: 85044030
- GTIN: 4046356933483
- Country of origin: Vietnam
