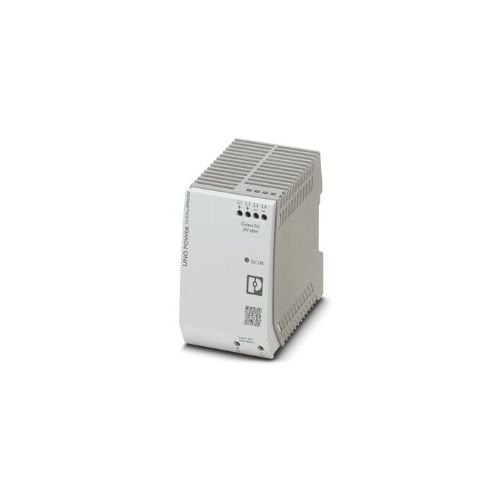

UNO-PS/350-900DC/24DC/60W | 2906300 | DC/DC Converter
With the DC/DC converters from the UNO POWER range, the control cabinet is supplied directly from the photovoltaic system
| Complete Electronics Part No. | 2906300 |
|---|---|
| Manufacturers Part No. | 2906300 |
| Nominal Input Voltage: | 350 V DC - 900 V DC |
| Nominal Output Voltage: | 24 V DC / 2.5 A |
| Output Setting Range: | 24 V DC |
Description
DIN Rail DC/DC Converter for DIN rail mounting
Primary-switched UNO DC/DC converter
- Wide input voltage range
- Direct field installation
- Nominal input voltage range: 350 V DC to 900 V DC
- Current Consumption:0.19 A (350 V DC), 0.07 A (1000 V DC)
- Recommended fuse for input protection: 1000 V DC
- Recommended breaker for input protection: 1 A (Characteristic gPV or comparable)
- Input Connection method: Screw connection
- Nominal Output Voltage: 24 V DC
- Nominal Output current: 2.5 A (-25 °C ... 55 °C)
- Output Connection method: Screw connection
- LED signaling
- Connection in parallel: Yes
- Connection in series: No
- Housing Material: Polycarbonate
- Foot Latch Material: POM (Polyoxymethylene)
- Operating temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
- Flammability rating according to UL 94: V0
- Width: 55 mm
- Height: 90 mm
- Depth: 84 mm
- Ingress protection: IP20
- Weight (excluding packing): 316.9g
- Customs tariff number: 85044030
- GTIN: 4055626062648
- UL Approved
- Country of origin: Germany
