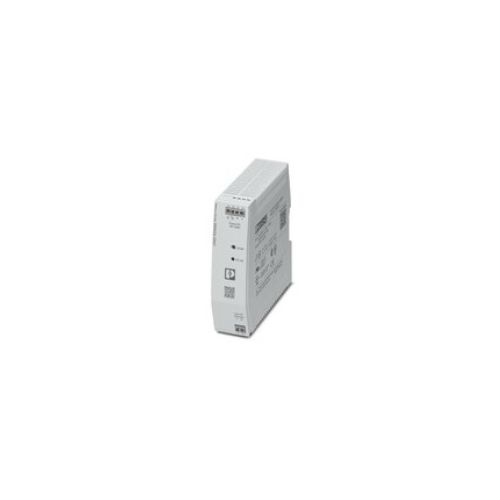

UNO2-PS/1AC/24DC/120W | 1110466 | DIN rail PSU
Din RAIL Power Supply, Output 24 Vdc, 5A, 120W, Nominal input range 100 Vac to 240 Vac, Screw connection, LED indicator, UL approved
| Complete Electronics Part No. | 1110466 |
|---|---|
| Manufacturers Part No. | 1110466 |
| Nominal Input Voltage: | 100v - 240v AC |
| Nominal Output Voltage: | 24 V DC / 5 A |
Description
DIN rail power supply
For 35mm DIN Rail
- Nominal input range:100 Vac to 240 Vac
- Input AC Frequency range: 50 Hz ... 60 Hz
- Transient surge protection; Varistor
- Input Fuse 3.15A slow blow
- Recommended breaker for input protection: 6 A ... 16 A (Characteristics B, C, D, K)
- Output range: 24 Vdc
- Output power: 120 W
- Output current: 5A
- Operating temperature: -25°C ... 70 °C (> 55°C Derating: 2.5 %/K)
- Overvoltage protection
- Short circuit protection
- Connection method: Screw connection
- LED signaling
- Width: 35 mm
- Height: 130 mm
- Depth: 125 mm
- Housing material: Polycarbonate
- Ingress protection: IP20
- Weight (excluding packing): 310g
- Customs tariff number: 85044030
- GTIN: 4063151024659
- Country of origin: Vietnam
