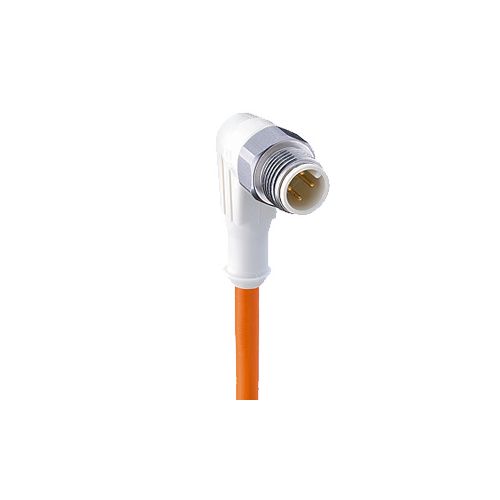

WRSWT 3-520/10 M | 934736003 | Cordset
Actuator/sensor cordset, single, M12 male, right angle, 3 pole, cable length 10 metres
| Complete Electronics Part No. | 934 736-003 |
|---|---|
| Manufacturers Part No. | 934736003 |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Male |
| Coded Option (Circular) | A |
| Cable Entry: | Right Angled |
| Number of poles | 3 |
| Rated Voltage: | 250V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 10 Metres |
| Cable Jacket: | TPE-V |
| IP Rating: | IP67 / 68 / 69K |
Description
WRSWT 3-520/10 M
Actuator/sensor cordset, M12 male connector, right angled version
With self-locking threaded joint and moulded cable
Hexagon screw in stainless steel
Especially designed for use in wash down applications
3 poles
TPE-V jacket
Flame-retardant
Orange
10 meters
IP67, IP68, IP69k (IEC 60529)
