WRSWT 8-523/2 M | 934736019 | Corsdset

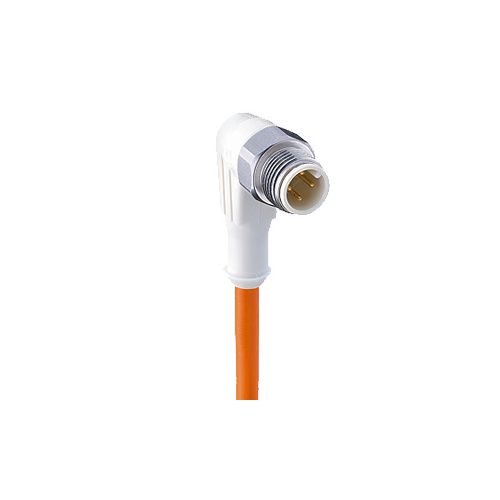

Actuator/sensor cordset, single, M12 male, right angle, 8 pole, cable length 2 metres
| Complete Electronics Part No. | 934 736-019 |
|---|---|
| Manufacturers Part No. | 934736019 |
| Type: | Cordset |
| Cordset Type: | Single Ended |
| Cordset Gender M12: | M12 Male |
| Coded Option (Circular) | A |
| Cable Entry: | Right Angled |
| Number of poles | 8 |
| Rated Voltage: | 30V |
| Rated Current: | 2 A at 40°C |
| Cable Length: | 2 Metres |
| Cable Jacket: | TPE-V |
| IP Rating: | IP67 / 68 / 69K |
Description
WRSWT 8-523/2 M
Actuator/sensor cordset, M12 male
- Right angled version
- With self-locking threaded joint and moulded cable
- Hexagon screw in stainless steel
- Especially designed for use in wash down applications
- 8 poles
- TPE-V jacket
- Flame-retardant
- Orange
- 2 metres
- IP67, IP68, IP69k (IEC 60529)
