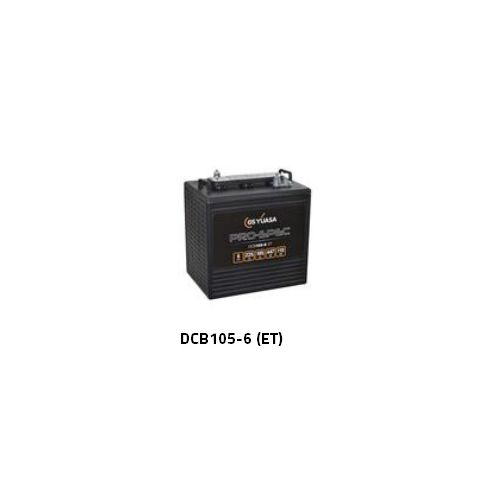

Yuasa DCB105-6(ET) Pro-Spec Deep Cycle Battery
Yuasa DCB105-6(ET) Pro-Spec Deep Cycle Battery, Nominal voltage (V) 6, Length (mm) 259 Width (mm) 179, Height (mm) 276, Mass (kg) 28.6
Description
Nominal voltage (V) 6
5-hr rate Capacity to 1.75v per cell at 20°C (Ah) 185
Capacity @ 75A (mins) 115
Capacity @ 25A (mins) 530
20-hr rate Capacity to 1.75V/Cell at 20°C (Ah) 225
Yuasa DCB105-6(ET) Pro-Spec Deep Cycle Battery
Specifications
Nominal voltage (V) 6
5-hr rate Capacity to 1.75v per cell at 20°C (Ah) 185
Capacity @ 75A (mins) 115
Capacity @ 25A (mins) 530
20-hr rate Capacity to 1.75V/Cell at 20°C (Ah) 225
Dimensions
Length (mm) 259
Width (mm) 179
Length (mm) 259
Width (mm) 179
Height (mm)264
Height over terminals (mm) 276
Mass (kg) 28.6
Height over terminals (mm) 276
Mass (kg) 28.6
Terminal Type
Posts
Posts
5-Hr Capacity By Temperature
40°C 105%
30°C 100%
0°C 80%
30°C 100%
0°C 80%
Material Specifications
Cover Style : Removable - Maintenance Possible
Cover Vent Style : Gang style
Container & Cover Material : Black polypropylene plastic
Case to Cover Seal Method : Heat sealing
Inner Cell Connector Type : Through-partition weld
Plate Lug Weld Method : Automated cast-on process
Positive Grid Material : Antimony lead alloy
Negative Grid Material : Antimony lead alloy
Cover Vent Style : Gang style
Container & Cover Material : Black polypropylene plastic
Case to Cover Seal Method : Heat sealing
Inner Cell Connector Type : Through-partition weld
Plate Lug Weld Method : Automated cast-on process
Positive Grid Material : Antimony lead alloy
Negative Grid Material : Antimony lead alloy
