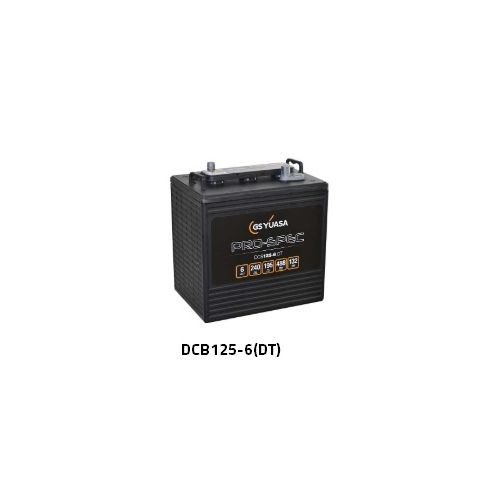

Yuasa DCB125-6(DT) Pro-Spec Deep Cycle Battery
Yuasa DCB125-6(DT) Pro-Spec Deep Cycle Battery, Nominal voltage (V) 6, Length (mm) 259 Width (mm) 179, Height (mm) 245, Mass (kg) 30.7
Description
Nominal voltage (V) 6
5-hr rate Capacity to 1.75v per cell at 20°C (Ah) 195
Capacity @ 75A (mins) 132
Capacity @ 25A (mins) 488
20-hr rate Capacity to 1.75V/Cell at 20°C (Ah) 240
Yuasa DCB125-6(DT) Pro-Spec Deep Cycle Battery
Specifications
Nominal voltage (V) 6
5-hr rate Capacity to 1.75v per cell at 20°C (Ah) 195
Capacity @ 75A (mins) 132
Capacity @ 25A (mins) 488
20-hr rate Capacity to 1.75V/Cell at 20°C (Ah) 240
Dimensions
Length (mm) 259
Width (mm) 179
Length (mm) 259
Width (mm) 179
Height (mm)245
Height over terminals (mm) 273
Mass (kg) 30.7
Height over terminals (mm) 273
Mass (kg) 30.7
Terminal Type
Posts
Posts
5-Hr Capacity By Temperature
40°C 105%
30°C 100%
0°C 80%
30°C 100%
0°C 80%
Material Specifications
Cover Style : Removable - Maintenance Possible
Cover Vent Style : Gang style
Container & Cover Material : Black polypropylene plastic
Case to Cover Seal Method : Heat sealing
Inner Cell Connector Type : Through-partition weld
Plate Lug Weld Method : Automated cast-on process
Positive Grid Material : Antimony lead alloy
Negative Grid Material : Antimony lead alloy
Cover Vent Style : Gang style
Container & Cover Material : Black polypropylene plastic
Case to Cover Seal Method : Heat sealing
Inner Cell Connector Type : Through-partition weld
Plate Lug Weld Method : Automated cast-on process
Positive Grid Material : Antimony lead alloy
Negative Grid Material : Antimony lead alloy
