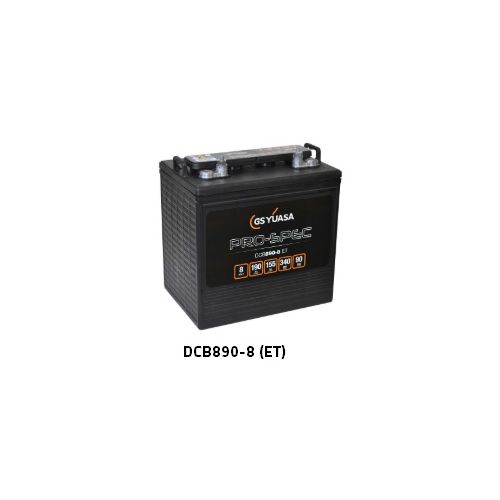

Yuasa DCB890-8(ET) Pro-Spec Deep Cycle Battery
Yuasa DCB890-8(ET) Pro-Spec Deep Cycle Battery, Nominal voltage (V) 8, Length (mm) 262 Width (mm) 181, Height (mm) 276 Mass (kg) 31.6
Description
Nominal voltage (V) 8
5-hr rate Capacity to 1.75v per cell at 20°C (Ah) 155
Capacity @ 75A (mins) 90
Capacity @ 25A (mins) 340
20-hr rate Capacity to 1.75V/Cell at 20°C (Ah) 190
Yuasa DCB890-8(ET) Pro-Spec Deep Cycle Battery
Specifications
Nominal voltage (V) 8
5-hr rate Capacity to 1.75v per cell at 20°C (Ah) 155
Capacity @ 75A (mins) 90
Capacity @ 25A (mins) 340
20-hr rate Capacity to 1.75V/Cell at 20°C (Ah) 190
Dimensions
Length (mm) 262
Width (mm) 181
Length (mm) 262
Width (mm) 181
Height (mm)245
Height over terminals (mm) 276
Mass (kg) 31.6
Mass (kg) 31.6
5-Hr Capacity By Temperature
40°C 105%
30°C 100%
0°C 80%
30°C 100%
0°C 80%
Terminal Type
Posts
Posts
Material Specifications
Cover Style : Removable - Maintenance Possible
Cover Vent Style : Gang style
Container & Cover Material : Black polypropylene plastic
Case to Cover Seal Method : Heat sealing
Inner Cell Connector Type : Through-partition weld
Plate Lug Weld Method : Automated cast-on process
Positive Grid Material : Antimony lead alloy
Negative Grid Material : Antimony lead alloy
Cover Vent Style : Gang style
Container & Cover Material : Black polypropylene plastic
Case to Cover Seal Method : Heat sealing
Inner Cell Connector Type : Through-partition weld
Plate Lug Weld Method : Automated cast-on process
Positive Grid Material : Antimony lead alloy
Negative Grid Material : Antimony lead alloy
