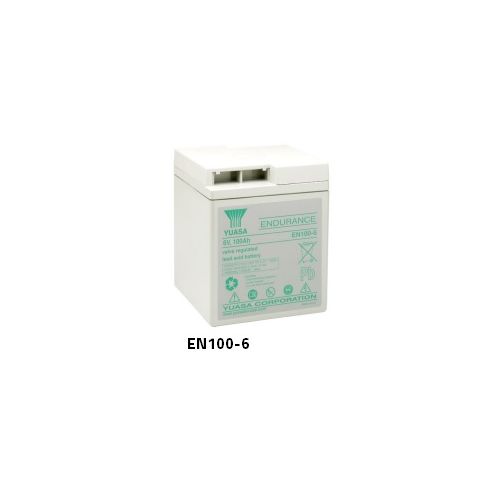

Yuasa EN100-6 | Industrial VRLA Battery
Yuasa EN100-6 Industrial VRLA Battery, Nominal voltage (V) 6, Length (mm) 200 (±3), Width (mm) 208 (±2), Height (mm) 238 (±2), Mass (kg) 24.1, M8(F) terminals
Description
Terminal Type
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS UL94:V0
Yuasa EN100-6 Industrial VRLA Battery
Specifications
Nominal voltage (V) 6
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 100
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 100
Dimensions
Length (mm) 200 (±3)
Width (mm) 208 (±2)
Height (mm) 238 (±2)
Mass (kg) 22
Length (mm) 200 (±3)
Width (mm) 208 (±2)
Height (mm) 238 (±2)
Mass (kg) 22
Terminal Type
M8(F) threaded
Operating Temperature Range
Storage (in fully charged condition) -20°C to +50°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage (in fully charged condition) -20°C to +50°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS UL94:V0
Charge Voltage
Float charge voltage at 20°C (V)/Block 6.78 (±1%)
Float charge voltage at 20°C (V)/Cell 2.26 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 7.2 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.40 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 6.78 (±1%)
Float charge voltage at 20°C (V)/Cell 2.26 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 7.2 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.40 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
