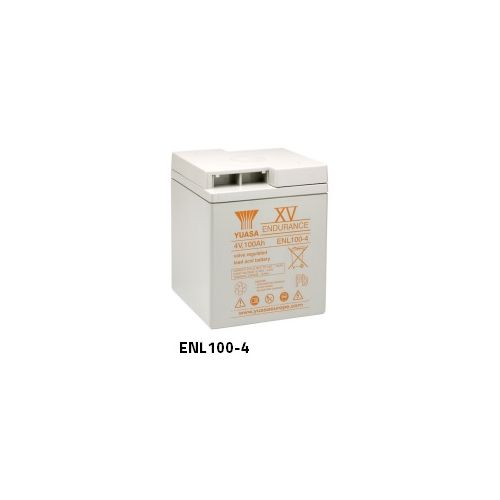

Yuasa ENL100-4 | Industrial VRLA Battery

Yuasa ENL100-4 Industrial VRLA Battery, Nominal voltage (V) 4, Length (mm) 200 (±3), Width (mm) 208 (±2), Height (mm) 238 (±2), Mass (kg) 37.5, M8(M) terminals

Description

Yuasa ENL100-4 Industrial VRLA Battery

Specifications

Nominal voltage (V) 4
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 100

Dimensions
Length (mm) 200 (±3)
Width (mm) 208 (±2)
Height (mm) 238 (±2)
Mass (kg) 17.5

Terminal Type
M8(M) threaded

Operating Temperature Range
Storage (in fully charged condition) -20°C to +50°C
Charge -15°C to +50°C
Discharge -20°C to +60°C

Storage
Capacity loss per month at 20°C (% approx.) 3

Case Material
Standard ABS UL94:V0

Charge Voltage
Float charge voltage at 20°C (V)/Block 4.52 (±1%)
Float charge voltage at 20°C (V)/Cell 2.26 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 4.8 (±2%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.40 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)



More Information

More Information
Complete Electronics Part No. Yuasa ENL100-4
Manufacturers Part No. Yuasa ENL100-4
Battery Voltage 4v
