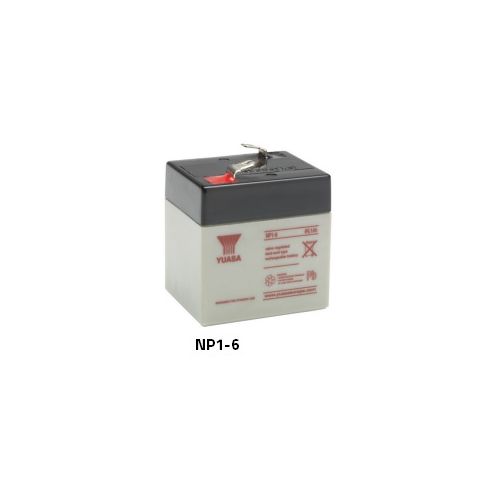

Yuasa NP1-6 | Industrial VRLA Battery
Yuasa NP1-6 Industrial VRLA Battery, Nominal voltage (V) 6, Length (mm) 51 (±2), Width (mm) 42.5 (±1), Height (mm) 54.5 (±2), Mass (kg) 0.25, FASTON - Quickfit / release 4.75
Description
Terminal Type
FASTON - Quickfit / release (JST where stated)
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:HB)
Yuasa NP1-6 Industrial VRLA Battery
Specifications
Nominal voltage (V) 6
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 0.93
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 0.93
Dimensions
Length (mm) 51 (±1)
Width (mm) 42.5 (±1)
Height (mm) 54.5 (±2)
Mass (kg) 0.25
Length (mm) 51 (±1)
Width (mm) 42.5 (±1)
Height (mm) 54.5 (±2)
Mass (kg) 0.25
Terminal Type
FASTON - Quickfit / release (JST where stated)
Operating Temperature Range
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:HB)
FR version available UL94:V0
Charge Voltage
Float charge voltage at 20°C (V)/Block 6.825 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 7.26 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 6.825 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 7.26 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
