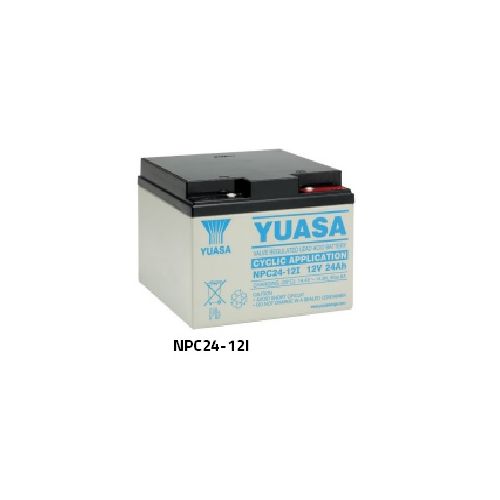

Yuasa NPC24-12I | Industrial VRLA Battery
Yuasa NPC24-12I Industrial VRLA Battery, Nominal voltage (V) 12, Length (mm) 166 (±2), Width (mm) 175 (±1), Height (mm) 125 (±2), Mass (kg) 9.9 ,M5 (F) terminals
Description
Terminal Type
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:HV)
Yuasa NPC25-12i Industrial VRLA Battery
Specifications
Nominal voltage (V) 12
10-hr rate capacity to 1.8V/Cell at 20°C (Ah) 22.2
10-hr rate capacity to 1.8V/Cell at 20°C (Ah) 22.2
Dimensions
Length (mm) 166 (±2)
Width (mm) 175 (±1)
Height 125 (±0.5)
Mass (kg) 2.7
Length (mm) 166 (±2)
Width (mm) 175 (±1)
Height 125 (±0.5)
Mass (kg) 2.7
Terminal Type
M5 (F) threaded Terminals
Operating Temperature Range
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:HV)
FR version available UL94:V0
Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
