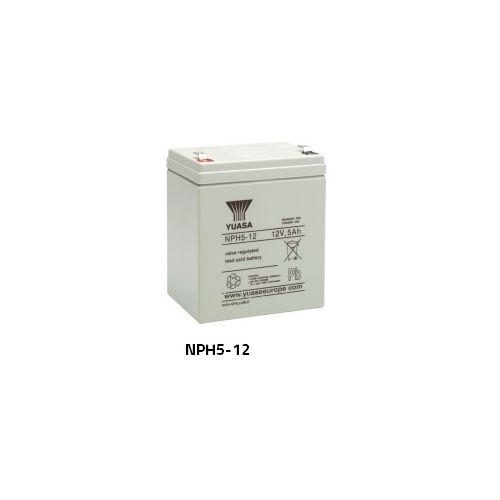

Yuasa NPH5-12| Industrial VRLA Battery
Yuasa NPH5-12 Industrial VRLA Battery, Nominal voltage (V) 12, Length (mm) 90 (±2), Width (mm) 70 (±1), Height (mm) 106 (±2), Mass (kg) 1.85 ,FASTON terminal
Description
Terminal Type
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:HB)
Yuasa NPH5-12 Industrial VRLA Battery
Specifications
Nominal voltage (V) 12
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 4.63
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 4.63
Dimensions
Length (mm) 90 (±1)
Width (mm) 70 (±1)
Height over terminals (mm) 106 (±2)
Mass (kg) 1.85
Length (mm) 90 (±1)
Width (mm) 70 (±1)
Height over terminals (mm) 106 (±2)
Mass (kg) 1.85
Terminal Type
FASTON - Quickfit / release
Operating Temperature Range
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:HB)
FR version available UL94:V0
Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
