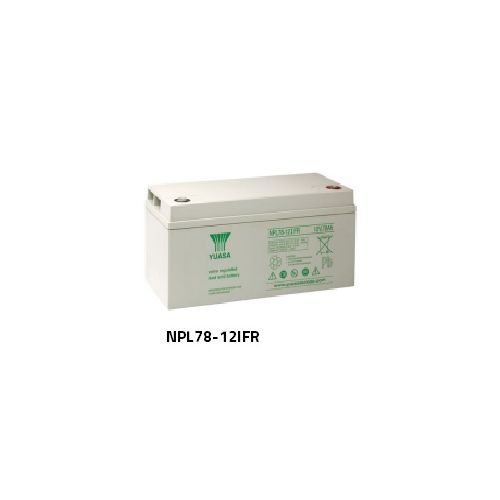

Yuasa NPL78-12IFR | Industrial VRLA Battery
Yuasa NPL78-12IFR Industrial VRLA Battery, Nominal voltage (V) 12, Length (mm) 380 (±2), Width (mm) 166 (±1), Height (mm) 174 (±0.5), Mass (kg) 27.5 ,Terminal M8(F)
Description
Terminal Type
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:V0)
Yuasa NPL78-12IFR Industrial VRLA Battery
Specifications
Nominal voltage (V) 12
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 72.1
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 72.1
Dimensions
Length (mm) 380 (±2)
Width (mm) 166 (±1)
Height (mm) 174 (±0.5)
Mass (kg) 27.5
Length (mm) 380 (±2)
Width (mm) 166 (±1)
Height (mm) 174 (±0.5)
Mass (kg) 27.5
Terminal Type
Threaded terminal, M8 (F)
Operating Temperature Range
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:V0)
Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
