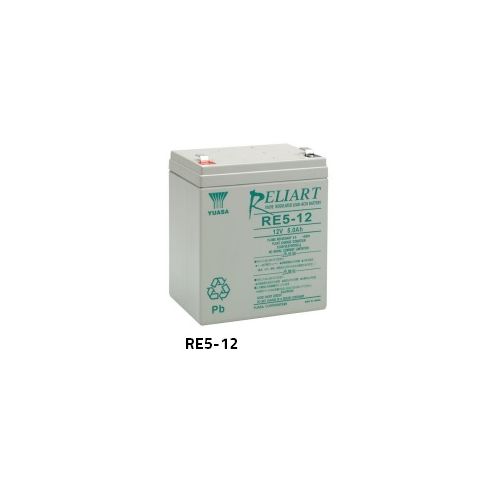

Yuasa RE5-12 | Industrial VRLA Battery
Yuasa RE5-12 Industrial VRLA Battery, Nominal voltage (V) 12, Length (mm) 90 (±0.5), Width (mm) 70 (±0.5), Height (mm) 106 (±0.5), Mass (kg) 1.96, FASTON terminals
Description
Terminal Type
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:HB)
Yuasa RE5-12 Industrial VRLA Battery
Specifications
Nominal voltage (V) 12
10-hr rate capacity to 1.8V/Cell at 20°C (Ah) 4.6
10-hr rate capacity to 1.8V/Cell at 20°C (Ah) 4.6
Dimensions
Length (mm) 90 (±0.5)
Width (mm) 70 (±0.5)
Height over terminals 106 (±0.5)
Mass (kg) 1.96
Length (mm) 90 (±0.5)
Width (mm) 70 (±0.5)
Height over terminals 106 (±0.5)
Mass (kg) 1.96
Terminal Type
FASTON 6.35
Operating Temperature Range
Storage (in fully charged condition) -15°C to +45°C
Charge -15°C to +45°C
Discharge -15°C to +45°C
Storage (in fully charged condition) -15°C to +45°C
Charge -15°C to +45°C
Discharge -15°C to +45°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:HB)
FR version available UL94:V0
Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
