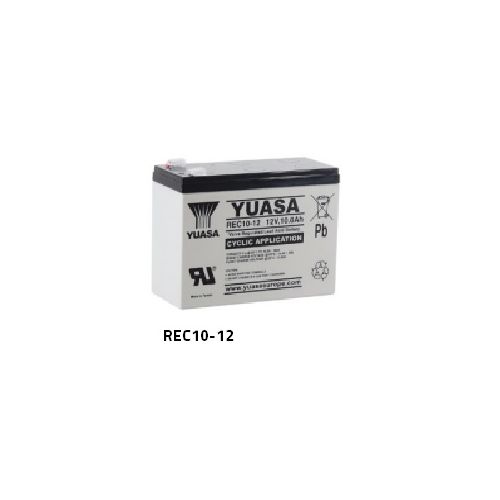

Yuasa REC10-12 | Industrial VRLA Battery
Yuasa REC10-12 Industrial VRLA Battery, Nominal voltage (V) 12, Length (mm) 151 (±1), Width (mm) 64 (±1), Height (mm) 112 (±2), Mass (kg), 6.35 FASTON terminals
Description
Terminal Type
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS UL94:HB
Yuasa REC10-12 Industrial VRLA Battery
Specifications
Nominal voltage (V) 12
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 9.3
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 9.3
Dimensions
Length (mm) 151 (±1)
Width (mm) 65 (±1)
Height over terminals 115.5 (±2)
Mass (kg) 3.2
Length (mm) 151 (±1)
Width (mm) 65 (±1)
Height over terminals 115.5 (±2)
Mass (kg) 3.2
Terminal Type
FASTON Quickfit / release 6.35
Operating Temperature Range
Storage (in fully charged condition) -15°C to +45°C
Charge -15°C to +45°C
Discharge -15°C to +45°C
Storage (in fully charged condition) -15°C to +45°C
Charge -15°C to +45°C
Discharge -15°C to +45°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS UL94:HB
FR version available UL94:V0
Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.52 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.52 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
