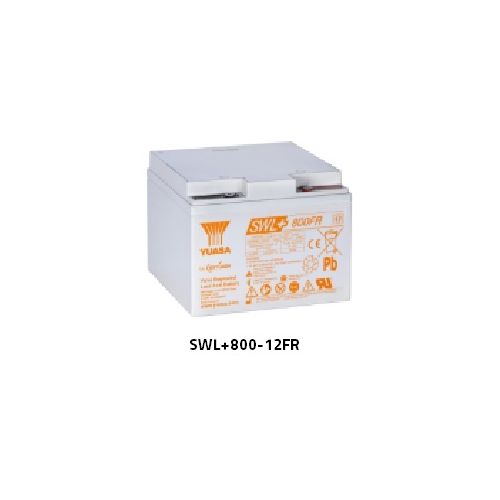

Yuasa SWL+800-12FR | Industrial VRLA Battery
Yuasa SWL+800-12FR Industrial VRLA Battery, Nominal voltage (V) 12, Length (mm) 166 (±2), Width (mm) 175 (±1), Height (mm) 125(±2), Mass (kg) 9.8, M5(F) terminals
Description
Terminal Type
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Yuasa SWL+800-12FR Industrial VRLA Battery
Specifications
Nominal voltage (V)12
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 22.9
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 22.9
Dimensions
Length (mm) 166 (±2),
Width (mm) 175 (±1),
Height (mm) 125 (±2),
Mass (kg) 9.8
Length (mm) 166 (±2),
Width (mm) 175 (±1),
Height (mm) 125 (±2),
Mass (kg) 9.8
Terminal Type
M5(F) threaded
Operating Temperature Range
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage (in fully charged condition) -20°C to +60°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94:HB)
FR version available UL94:V0
Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
