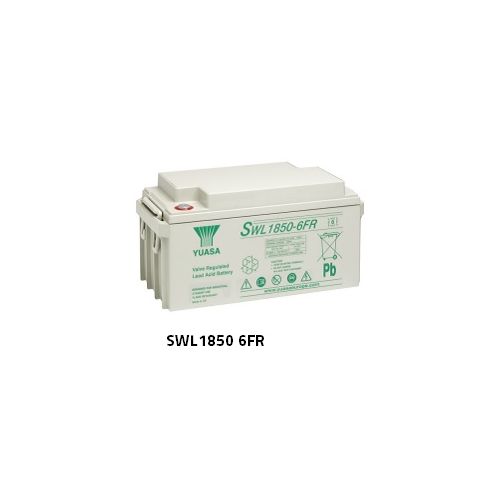

Yuasa SWL1850-6FR | Industrial VRLA Battery
Yuasa SWL1850-6FR Industrial VRLA Battery, Nominal voltage (V) 6, Length (mm) 350 (±2), Width (mm) 166 (±1), Height (mm) 174 (±2), Mass (kg) 23.8, M5(F) terminals
Description
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS UL94:V0
Yuasa SWL1850-6FR Industrial VRLA Battery
Specifications
Nominal voltage (V) 6
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 132
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 132
Dimensions
Length (mm) 350 (±2)
Width (mm) 166 (±1)
Height (mm) 174 (±2)
Mass (kg) 23.8
Length (mm) 350 (±2)
Width (mm) 166 (±1)
Height (mm) 174 (±2)
Mass (kg) 23.8
Terminal Type
M6(F) threaded
Operating Temperature Range
Storage (in fully charged condition) -20°C to +50°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage (in fully charged condition) -20°C to +50°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS UL94:V0
Charge Voltage
Float charge voltage at 20°C (V)/Block 60825 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 7.25 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 60825 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 7.25 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
