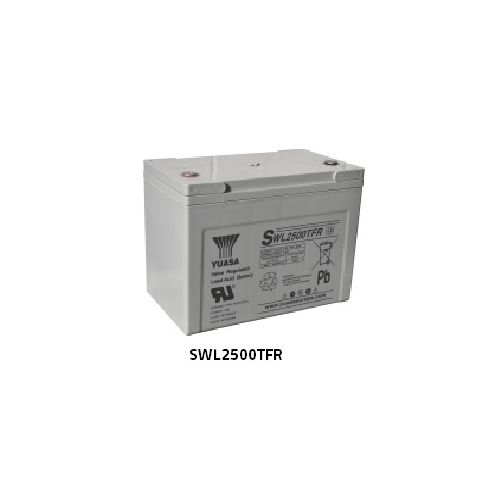

Yuasa SWL2500TFR | Industrial VRLA Battery
Yuasa SWL2500TFR Industrial VRLA Battery, Nominal voltage (V) 12, Length (mm) 305 Width (mm) 173, Height (mm) 225, Mass (kg) 32, Terminal M6(F)
Description
Terminal Type
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94V0)
Yuasa SWL2500TFR Industrial VRLA Battery
Specifications
Nominal voltage (V) 12
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 91.4
10-hr rate Capacity to 1.8V/Cell at 20°C (Ah) 91.4
Dimensions
Length (mm) 305 (±3)
Width (mm) 173 (±3)
Height over terminals (mm) 225 (±3)
Mass (kg) 32
Length (mm) 305 (±3)
Width (mm) 173 (±3)
Height over terminals (mm) 225 (±3)
Mass (kg) 32
Terminal Type
Threaded terminal, M6(F)
Operating Temperature Range
Storage (in fully charged condition) -20°C to +50°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage (in fully charged condition) -20°C to +50°C
Charge -15°C to +50°C
Discharge -20°C to +60°C
Storage
Capacity loss per month at 20°C (% approx.) 3
Case Material
Standard ABS (UL94V0)
Charge Voltage
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
Float charge voltage at 20°C (V)/Block 13.65 (±1%)
Float charge voltage at 20°C (V)/Cell 2.275 (±1%)
Float Chg voltage tmp correction factor from std -3 20°C (mV)
Cyclic (or Boost) charge Voltage at 20°C (V)/Block 14.5 (±3%)
Cyclic (or Boost) charge Voltage at 20°C (V)/Cell 2.42 (±3%)
Cyclic Chg voltage tmp correction factor from std -4 20°C (mV)
