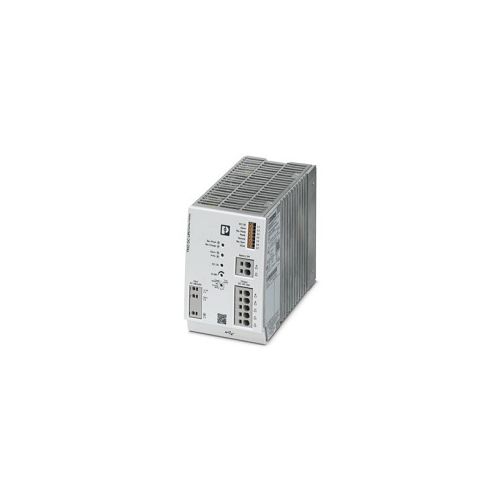

1105556 | TRIO-UPS-2G/1AC/24DC/20 | UPS

TRIO UPS - UPS with integrated power supply, USB (Modbus/RTU), DIN rail mounting, Push-in connection, input: 1-phase, output: 24 V DC / 20 A

More Information
Complete Electronics Part No.	1105556
Manufacturers Part No.	1105556
Phoenix Ethernet Series:	Trio UPS
Input Voltage:	AC 100V to 240V
Operating Voltage:	DC 24 V
Output Type:	20 A

Description

TRIO-UPS-2G/1AC/24DC/20

Uninterruptible Power Supply

This product requires the purchase of a battery for operation

Input Data

Input voltage range: 100 V AC ... 240 V AC -15 % ... +10 %

Typical current consumption: 6.4 A (100 V AC)

Input fuse: 10 A (slow-blow, internal)

Switch-on time typ. 200 ms

Output Data (Mains Operation)

Output voltage:24 V DC

Output voltage range 18 V DC ... 30 V DC (> 24 V constant capacity)

Output current: 20 A

Dynamic Boost: 30 A

Output Data (Battery Operation)

Output Voltage range: UBAT -0.1 V DC

Output current: 20 A

Functionality

Long buffer times, thanks to large selection of VRLA energy storage systems

USB interface for connection to higher-level controllers such as industrial PCs

Startup from energy storage possible, even without mains input

Signal Alarm: Red LED

Signal Battery mode: Yellow LED

Signal DC OK: Green LED

Connection method: Push-in connection

Interface: USB (Modbus/RTU), Mini USB Type B

Degree of protection: IP20

Operating Temperature: -25°C ... 70°C

cULus Listed Approval ID: FILE E 123528, cULus Listed Approval ID: FILE E 199827

Dimensions

Width: 88 mm

Height: 130 mm

Depth: 160 mm

Mounting Type: DIN Rail

Item dimensions with alternative mounting

Width: 160 mm

Height: 130 mm

Depth: 88 mm

Commercial data

Weight per Piece (excluding packing): 1688 g

Weight per Piece (including packing): 2003.96 g

Part Number: 1105556

GTIN: 4055626988900

Customs tariff number: 85044095

Country of Origin: CN
