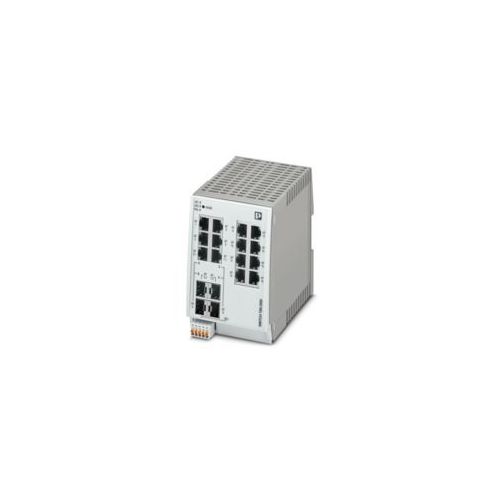

1232305 | FL SWITCH TSN 2312-2GC-2SFP | Ethernet Switch
Managed TSN Switch 2000, 12 RJ45 ports 10/100/1000 Mbps, 2 SFP ports 100/1000 Mbps, 2 x Combo ports 10/100/1000 Mbps, PROFINET Conformance-Class B
| Complete Electronics Part No. | 1232305 |
|---|---|
| Manufacturers Part No. | 1232305 |
| Phoenix Ethernet Series: | Managed Switch TSN 2000 |
| Managed / Unmanaged: | Managed |
| Total 100/1000 (FX) Ports | 2 |
| Total 10/100/1000 (RJ45) Ports | 12 |
| Number of Combo Ports | 2 |
| Total Ethernet Ports | 16 |
| FX (Optical) Connector Type: | SFP |
| IP Rating: | IP20 |
Description
FL SWITCH TSN 2312-2GC-2SFP
12 x Twisted Pair RJ45 Ports, 2 x SFP Ports, 2 Combo Ports
Ethernet (RJ45 x 12)
Transmission speed: 10/100/1000 Mbps
Transmission length:100 m (per segment)
Signal LED's: Data receive, link status
Ethernet (SFP x 2)
Transmission speed: 100/1000 Mbps (full duplex)
Transmission physics: Depending on the SFP module
Transmission length: up to 80 km (depending on the SFP module used)
Signal LEDs: Data receive, link status
Ethernet (Combo Ports x 2)
Connection Method: SFP/RJ45
Transmission speed: 10/100/1000 Mbps (full duplex)
Transmission physics: Depending on the SFP module
Transmission length: up to 80 km (depending on the SFP module used)
Signal LEDs: Data receive, link status
Switch functions
Auto Negotiation and Autocrossing
Complies with IEEE 802.3, store and forward switching
Jumbo frames (max. 9,600 bytes)
Transmission of MMS and GOOSE (IEC 61850-8-1)
Transmission of Modbus/TCP
SNTP (Simple Network Time Protocol)
DIN Rail Mount
PROFINET device
Supply voltage: 24V DC
Supply voltage range: 12 V DC ... 57 V DC
Power supply connection Via COMBICON, max. conductor cross section 1.5 mm²
Typical current consumption: 790 mA (at 24 V DC & 25°C ambient)
Alarm Output
Degree of protection: IP20
Operating Temperature: -40°C ... 60°C
Dimensions
Width: 85mm
Height: 130mm
Depth: 115mm
Housing Material: Polycarbonate fibre reinforced
Mounting Type: DIN Rail
Commercial data
Weight per Piece (excluding packing): 445 g
Weight per Piece (including packing): 723 g
Part Number 1232305
GTIN: 4063151333058
Country of Origin: DE
