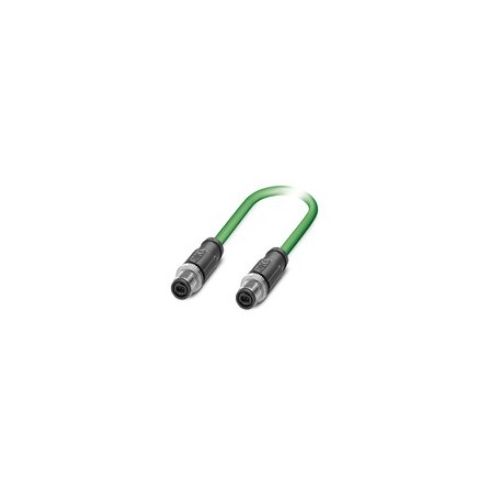

1364622 | SPE-T1-M12MS/ 2,0-99B/M12MS | SPE Cable
Plug straight SPE / IP67, on Plug straight SPE / IP67, cable length: 2 m, CAT B (1 Gbps), 2-position, Shielded, halogen-free
| Complete Electronics Part No. | 1364622 |
|---|---|
| Manufacturers Part No. | 1364622 |
| Category | CAT B (1 Gbps) |
| Style | Plug - Plug |
| Cable Length: | 2 Metres |
Description
Single Pair Ethernet Cable (SPE)
CAT B (1 Gbps), 2-position
- M12 connectors, compatible with IP20 connectors for SPE
- With Advanced Shielding Technology
- Single Pair Ethernet CAT B (ISO/IEC 63171), 1 Gbps
- Nominal Voltage: 72 V DC
- Connector 1: Plug straight SPE / IP67
- Connector 2: Plug straight SPE / IP67
- Cable Type: Single Pair Ethernet PUR flexible, green [99B]
- External Cable Diameter: 5.8 mm ±0.3 mm
- Cable Length: 2 metres
- Outer Sheath Colour: Green
- Single wire colour: White, Blue
- 1 pair with fillers twisted horizontally
- Minimum Bending Radius (Fixed): 4 x Diameter
- Minimum Bending Radius (Flexible): 8 x Diameter
- Flame Resistance: according to IEC 60332-1-2
- Flammability rating according to UL 94: V0
- Oil Resistance: in accordance with DIN EN 60811-404
- Operating Tempetature (Fixed installation): -40°C ... 80°C
- Operating Tempetature (Flexible installation): -25°C ... 80°C
- Ingress Protection: IP65 / IP67
- Weight (each): 22.22g
- Country Of Origin: PL
- Made to Order (non-returnable)
