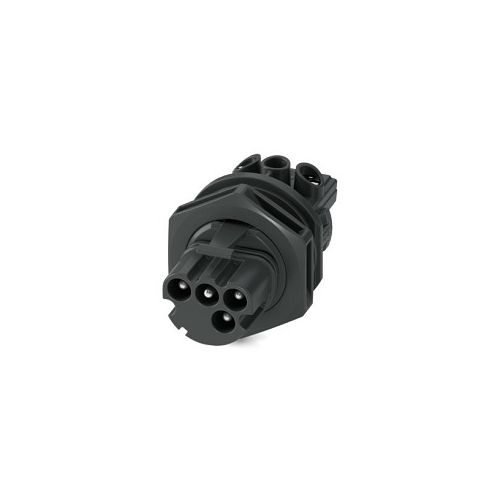

1437018 | CBC-PRC 3-FT25-MS6 400V | Panel Feed Through
Panel feed-through, ArcZero, colour: black, number of positions: 3, rated voltage: 400 VDC, rated current: 20 A, Contact connection type: Pin
| Complete Electronics Part No. | 1437018 |
|---|---|
| Manufacturers Part No. | 1437018 |
Description
CBC-PRC 3-FT25-MS6 400V
ArcZero Panel feed through
Functionality
Nominal rated voltage: 400 V DC
Rated current 20 A (With 2.5 mm² conductor)
Robust outdoor design even for extreme conditions
Halogen free
3 Poles
External cable diameter: 8 mm ... 21 mm
Single wire, cross section 1.5 mm² 6 mm²
Screw Connection
Operating Temperature: -40°C ... 105°C
Halogen-free
Colour: Black
Protection class II (plastic housing)
Ingress protection: IP66, IP68 (2m / 2h), IP69
Fit the protective cap when not plugged in
Insertion/withdrawal cycles: 500 (under rated load)
ROHS Compliant
Dimensions
Width: 35 mm
Height: 35 mm
Depth: 54.7 mm
Commercial data
Weight per Piece (excluding packing): 22.22 g
Weight per Piece (including packing): 54.5 g
Part Number: 1437018
GTIN: 4063151814427
Customs tariff number: 85366990
Country of Origin: DE
