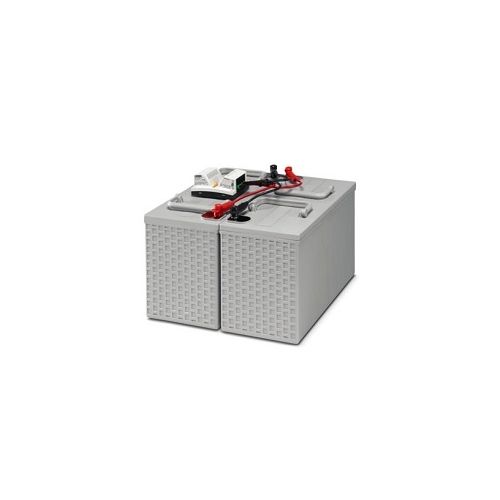

1474660 | UPS-BAT/PB/24DC/110AH | UPS
Battery module, VRLA-AGM, 24 V DC, 110 Ah, For continuous monitoring and intelligent management, there is constant communication with the QUINT UPS.
| Complete Electronics Part No. | 1474660 |
|---|---|
| Manufacturers Part No. | 1474660 |
| Phoenix Ethernet Series: | Quint UPS Battery Module |
| Input Voltage: | 24 V DC |
| Operating Voltage: | DC 24 V |
| Output Type: | 110 Ah |
Description
UPS-BAT/PB/24DC/110AH
QUINT UPS Battery Module
Input Data
Input voltage: 24 V DC (SELV)
Nominal Capacity: 110 Ah
Charging Current: 32.4 A
End of charge voltage: 27.6 V (20 °C)
Output Data
Output Current: max 45 A
Output Fuse: 2 x 25 A
Buffer Time: 280 min (20 A), 130 min (40 A)
Functionality
Battery Type: BB Battery BP MPL110-FR
Battery technology: VRLA-AGM
Connection in parallel: YES (max 3)
IQ-Technology: YES
Suitable for fast charging
With temperature sensor
Base Mounting
Ingress protection: IP20
Operating temperature: -20°C ... 40°C
Not suitable for EX-applications
Service life at 20°C: 10 years
Approvals: cULus Listed, IECEE CB Scheme
See datasheet for full approvals list
Note:- Used batteries must not be thrown away with household waste
Dimensions
Width: 350 mm
Height: 214 mm
Depth: 332 mm
Drill hole diameter: 5mm
Mounting Type: Base mounting
Commercial Data
Weight per Piece (excluding packing): 68,00 g
Weight per Piece (including packing): 68,66 g
Part Number: 1474660
GTIN: 4063151887711
Country of Origin: CN
