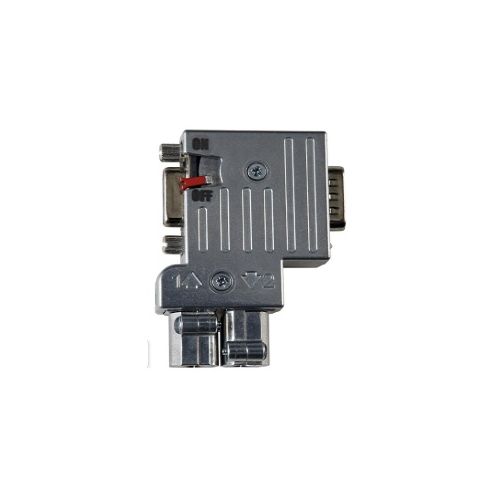

21700590 | ED-CAN-90-PG-PRO | Lapp Cable
Data connector; CAN; Sub-D Plug/Socket; Angled (90 °); Switchable Bus Terminator, 360° shielding, Cable Outlet 90°, diagnostic interface
| Complete Electronics Part No. | 21700590 |
|---|---|
| Manufacturers Part No. | 21700590 |
| Type: | Connector |
Description
Mechanical characteristics
Lapp part number:
21700590 / EPIC® ED CAN90-PG-PRO
CAN; Sub-D Socket; Angled (90 °); Switchable Bus Terminator
Description
EPIC® DATA CAN-Bus Sub-D connector
Axial Version
External terminal (7 – 10 mm)
9-pole
Connectors and pin layout Acc. to CAN-bus specification
Locking screw Sub-D/UNC 4-40
CAN-Bus cable interfaces Strain relief and shield connection
External cable clamp Single wire termination
Product standard, M12 connector IEC 61076-2-101
General characteristics
Suitable cable-Ø 7.0 – 10.0 mm
Wire size 0.08 – 0.5 mm2 (AWG 28 – AWG 14)
Termination resistor Activated via external switch
Transmission rate (max.) 1 Mbit/s
Temperature range -20 °C to +70 °C (-4 °F to 158 °F)
Protection class IP 30
Wire size 0.08 – 0.5 mm2 (AWG 28 – AWG 14)
Termination resistor Activated via external switch
Transmission rate (max.) 1 Mbit/s
Temperature range -20 °C to +70 °C (-4 °F to 158 °F)
Protection class IP 30
Number of pins 9
Mechanical characteristics
Dimensions 62.5 mm x 45.1 mm 17.5 mm (LxWxH)
Housing, material Zn alloy
Lifetime 200 mating cycles
Housing, material Zn alloy
Lifetime 200 mating cycles
Connector format Sub-D
Connector type Socket
For cable outer diameter min. 7 mm
For max. cable outer diameter 10 mm
Assembling type: Field configurable
Housing base material: Zinc alloy
Electrical characteristics
Min. connectable conductor cross-section fine-wire 28 AWG
Max. connectable conductor cross-section fine-wire 14 AWG
Max. connectable conductor cross-section fine-wire 14 AWG
CE marked
Connector pin assignment
CAN Low = Pin 2
CAN Gnd = Pin 3
CAN High = Pin 7
CAN V+ = Pin 9
CAN Gnd = Pin 3
CAN High = Pin 7
CAN V+ = Pin 9
General Information
High function and failure protection in harsh environments.
The small design size make it suitable for use in limited spaces
Service-friendly screw connection enables assembly without special tools
Thanks to the integrated terminating resistors that can be switched via a slide controller
Improved protection against electromagnetic interference due to metallised housing
External cable clamps provide increased strain relief for the cables
Also available as a "PG" variant with a second D-sub interface for programming and diagnosis
Lapp part number:
21700590
