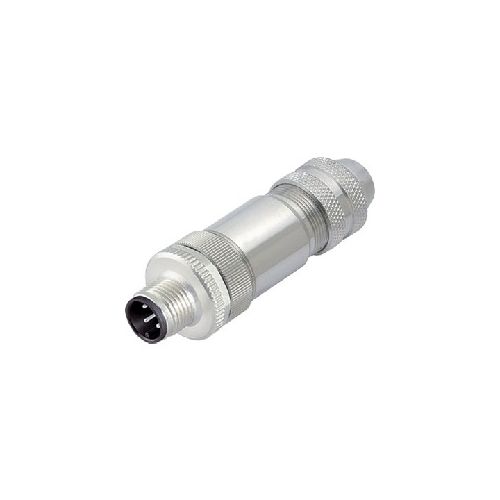

22260135 | AB-C5-M12MS-PG9-SH | Lapp Cable
EPIC® SENSOR M12 Field mountable M12 BUS-connector, M12 plug, 5-pins, A Coded, Screw Connection, Rated voltage 60 V DC according to IEC
| Complete Electronics Part No. | 22260135 |
|---|---|
| Manufacturers Part No. | 22260135 |
| Type: | Connector |
Description
Sensor/Actuator connector, M12 A-coded plug
Mechanical characteristics
22260135 / AB-C5-M12FS-PG9-SH
Sensor/Actuator connector, M12 A-coded plug
Description
Data connector, without cable gland
Weight 0.046 kg
M12, 5 pins, A-coded, shielded
Field configurable
Screw connection
General characteristics
Ambient Temperature (operation): -40° to +85°C
Protection class IP 67
Number of pins 5
Coding A – standard
Thread size M12
A coded
Status indicator No
Mechanical characteristics
Contact, material Brass (CuZn)
Contact surface, material gold plated (Au)
Contact carrier, material PA
Locking nut Die-cast zinc, Ni plated
Seal material, NBR, FPM / FKM, CR
Colour housing: Metal
Min. connectable conductor cross section fine-wire 0.25 mm²
Max. connectable conductor cross-section fine-wire 0.75 mm²
Total length 62 mm
Diameter connector 20.2 mm
For cable outer diameter min. 6 mm
For max. cable outer diameter 8 mm
Screw connection, metal knurl, cable screw connection Pg9
Locking type: Screw lock
Electrical characteristics
Rated voltage 60 V DC according to IEC
Rated current (at 40 °C) 4 A according to IEC
Overvoltage category II
Pollution degree 3
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Standard
Product standard M12-plug according to IEC 61076-2-101Lapp part number: 22260136
