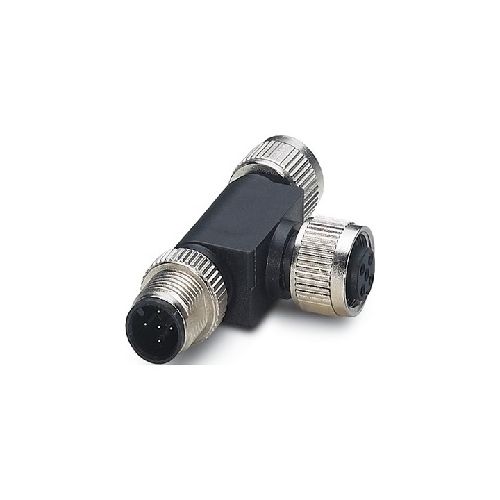

22260765 | AB-C5-M12T-2XM12FS DN | Lapp Cable
M12 T parallel distributor for CAN/ DeviceNet, 5-pin parallel distributor, M12 socket on M12 plug and M12 socket, PWIS-free, voltage: 60 V DC
| Complete Electronics Part No. | 22260765 |
|---|---|
| Manufacturers Part No. | 22260765 |
| Type: | Connector |
Description
Mechanical characteristics
22260765 / AB-C5-M12T-2XM12FS DN
T-splitter; Sensor/Actuator; M 12 (A-coded) MFF
Description
Data connector, without cable gland
Weight 0.023 kg
M12, 5 pins, A-coded, not shielded
Locking type: Screw Thread
Plug on 2x sockets
Field configurable
Screw connection
General characteristics
Ambient Temperature (operation): -25° to +90°C
Protection class IP 65 / 67
Number of pins 5
Coding A – standard
Thread size M12
A coded
Status indicator No
Mechanical characteristics
Contact, material Brass (CuZn)
Contact surface, material gold plated nickel (NiAu)
Contact carrier, material CuZn
Housing base material: Thermoplastic polyurethane (TPU), hardly inflammable, self-extinguishing
Colour housing: Black
Total length 55.8mm x 32.5mm
Locking type: Screw lock
Electrical characteristics
Rated voltage 60 V DC according to IEC
Rated current (at 40 °C) 4 A according to IEC
Overvoltage category II
Pollution degree 3
Contact resistance ≤ 3 mΩ
Insulation resistance ≥ 100 MΩ
Lapp part number: 22260765
