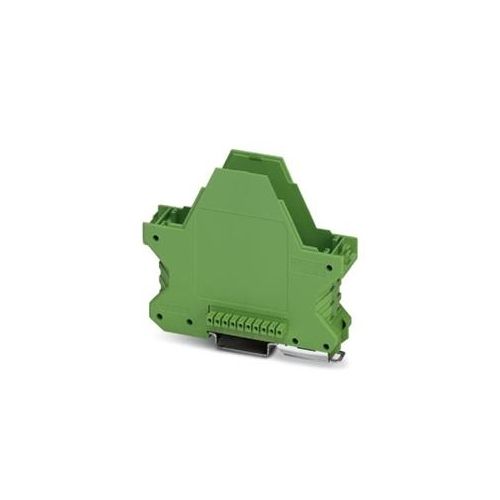

2736000 | ME 22,5 F-UTG BUS/10 GN | Component housing without vents
Component housing without vents, Lower part, from the ME product range, Length: 99 mm, Width: 22.5mm, Height: 106mm
| Complete Electronics Part No. | 2736000 |
|---|---|
| Manufacturers Part No. | 2736000 |
| Material / Type | Housing |
| Enclosure Shape: | Rectangular |
| Enclosure Length: | 51mm to 100mm |
| Enclosure Width: | up to 50mm |
| Enclosure Height: | 101mm to 150mm |
| Housing Selection: | ME Series Housings |
Description
ME 22,5 F-UTG BUS/10 GN
Component housing without vents
- Lower part
- from the ME product range
- Length: 99 mm
- Width: 22.5mm
- Height: 106mm
- Cross connection: with integrated bus connector
- Number of positions cross connector: 10
- Tool-free mounting
- Operating Temperature -40°C..105°C
- Colour: Green
- Material: Polyamide
- Weight per Piece (excluding packing) 40.420 g
- Country of origin: Germany
