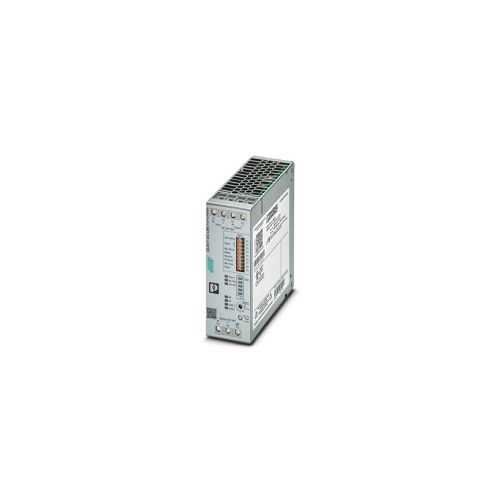

2907079 | QUINT4-UPS/24DC/24DC/40/PN | UPS
QUINT USV, IQ Technology, PROFINET, DIN rail mounting, Screw connection, input: 24 V DC, output: 24 V DC / 40 A, charging current: 5 A
| Complete Electronics Part No. | 2907079 |
|---|---|
| Manufacturers Part No. | 2907079 |
| Phoenix Ethernet Series: | Quint UPS |
| Input Voltage | 24 V DC |
| Operating Voltage: | DC 24 V |
| Output Type | 40 A |
Description
QUINT4-UPS/24DC/24DC/40/PN
Uninterruptible Power Supply
Input Data
Input voltage: 24 V DC
Input voltage range: 18 V DC ... 30 V DC
Internal input fuse: No
Reverse polarity protection: Yes
Switch-on time max. 3 s
Output Data (Mains Operation)
Nominal output voltage: 24 V DC
Output voltage range 18 V DC ... 30 V DC
Nominal output current: 40 A
Static Boost: 45 A
Dynamic boost: 60 A (5 s)
Selective Fuse Breaking: 215 A (15 ms)
Output power: 960 W
Output power static boost: 1080 W
Output Data (Battery Operation)
Nominal output voltage: 24 V DC
Output voltage range 19 V DC ... 32 V DC
Nominal output current: 40 A
Static Boost: 45 A
Selective Fuse Breaking: 215 A (15 ms)
Output power: 960 W
Output power static boost: 1080 W
Functionality
Battery technology: VRLA, VRLA-WTR, LI-ION
Monitoring of output current and voltage
Evaluation of state of health (SOH)
Evaluation: state of charge (SOC)
Intelligent battery management system (BMS)
SFB Technology selectively trips standard miniature circuit breakers
Number of outputs: 1
Reverse polarity protection: yes
Short-circuit-proof: yes
No-load proof yes
Switch-over time 0 ms
Temperature sensor: yes
Interface: PROFINET
Number of interfaces: 2
Connection method: RJ45
UPS connection in series: No
IQ-Technology: Yes
Connection method: Screw connection / Push-in connection
Degree of protection: IP20
Operating Temperature: -25°C ... 70°C (> 60 °C Derating: 2,5 %/K)
Housing materials: Metal / Stainless steel X6Cr17 / Aluminum AlMg3
Ul approval: UL/C-UL Listed UL 61010-1 (see datasheet for complete list of approvals)
Dimensions
Width: 47 mm
Height: 130 mm
Depth: 125 mm
Mounting Type: DIN Rail
Item dimensions with alternative mounting
Width: 123 mm
Height: 130 mm
Depth: 49 mm
Commercial Data
Weight per Piece (excluding packing): 584 g
Weight per Piece (including packing): 744 g
Part Number: 2907079
GTIN: 4055626170039
Customs tariff number: 85371091
Country of Origin: CN
