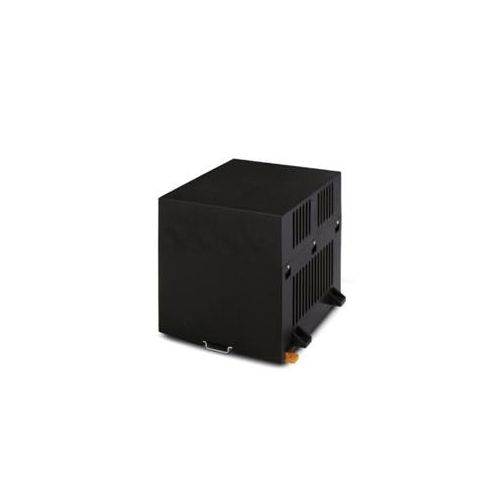

2941853 | CM200-LG/H 55/BO/DB/GH BK | Complete housing with vents
Complete housing with vents, Without bus connector, Colour: Black, Width: 200 mm, Length: 149 mm
| Complete Electronics Part No. | 2941853 |
|---|---|
| Manufacturers Part No. | 2941853 |
| Material / Type | Polycarbonate |
| Enclosure Shape: | Rectangular |
| Enclosure Length: | 101mm to 150mm |
| Enclosure Width: | 151mm to 200mm |
| Enclosure Height: | 201mm to 250mm |
| Housing Selection: | PCB Housing |
Description
CM200-LG/H 55/BO/DB/GH BK
Complete housing with vents
- Without bus connector
- Colour: Black
- Width: 200 mm
- Length: 149 mm
- Height: 165 mm
- Depth: 149mm
- Easy snap-on mounting
- on symmetrical DIN rails
- Shock and contamination-proof accommodation of electronic components
- Housing material Polycarbonate fibre reinforced
- Weight per Piece (excluding packing) 860.400 g
- Country of origin Germany
- Operating Temperature range -40 °C ... 105 °C
