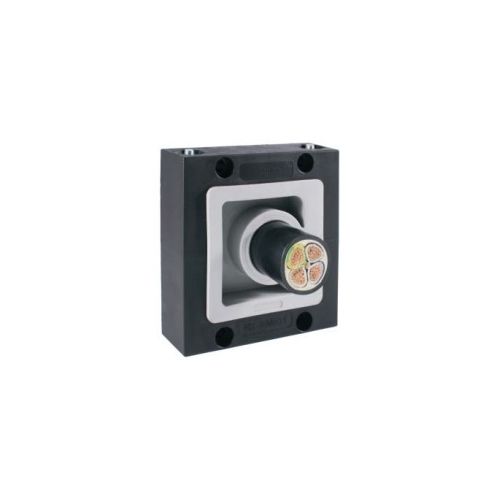

42350 | KEL-JUMBO 2 black | Entry Frame
Cable Entry Frame, Screw type mounting, Grommets: 1 x KTF, Frame Dimensions, Length 200mm, Width 116mm, Height: 35mm
| Complete Electronics Part No. | 42350 |
|---|---|
| Manufacturers Part No. | 42350 |
| Number of Cables: | max 2 |
| ATEX Approval: | Not ATEX Approved |
| Series: | KEL JUMBO |
Description
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54
Temperature Rating: - 40°C to +140°C
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Packing Unit: 1
Icotek part no. 42350
EAN: 4251269308536
42350 | KEL-JUMBO 2 black | Entry Frame
Cable entry frames
Suitable for Grommets: 2 x KTF
Length: 200mm
Width: 116mm
Height: 35mm
Cut out size: 168 x 80.5mm
Max No. cables: 2
Max Cable Diameter 65mm
4 Screw holes (7mm diameter)
Mounting Screws: Mild steel, galvanically zinc plated
Length: 200mm
Width: 116mm
Height: 35mm
Cut out size: 168 x 80.5mm
Max No. cables: 2
Max Cable Diameter 65mm
4 Screw holes (7mm diameter)
Mounting Screws: Mild steel, galvanically zinc plated
Material: Polyamide (PA)
Flame Class: UL94-V0, self-extinguishing
IP Rating: IP54
Temperature Rating: - 40°C to +140°C
Halogen-free and silicone-free
UV Resistant, Vibration Proof
Packing Unit: 1
Icotek part no. 42350
EAN: 4251269308536
