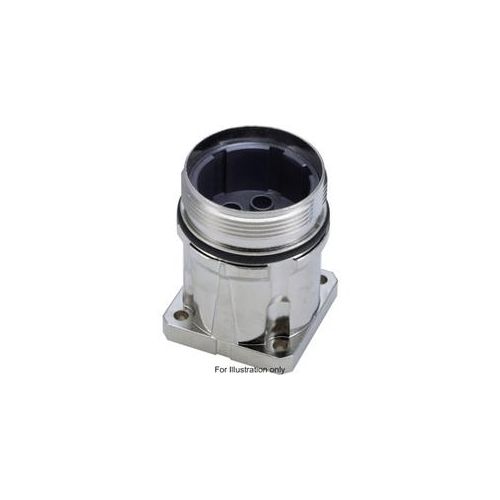

44429309 | Lapp Circular Connector | Epic® Power LS1.5 A1

Lapp Epic® Power LS1.5 A1 Cicular Connector, Wall / Panel Mounting, Number of Contacts 3+PE+4 (8 Contacts)
More Information
Complete Electronics Part No. 44429309
Manufacturers Part No. 44429309
Type: Connector Body
Lapp Circular Range: Power LS1.5 A1
Number of poles 3+PE+4 (8 contacts)
Male/Female: Male
Termination: Crimp
Mounting: Panel Mount with Flange
Description

Part Number 44429309

Lapp Epic® Power LS1.5 A1 Cicular Connector

  • Wall / Panel Mounting
  • Number of Contacts 3+PE+4 (8 Contacts)
  • For Male Contacts - Contacts to be ordered separately
  • Contact Sizes: 3.6mm / 2mm
  • Rated Voltage: 630V (3.6mm contacts), 250V (2mm Contacts),
  • Rated Current: 2mm Contacts 30A at 25°C, 3.6mm Contacts 70A at 25°C
  • Housing: Nickel Plated Zinc
  • Fixing Size: Ø 4.2mm x4
  • Inges Protection: IP67
  • Temperature Range: -20°C to +125deg;C
  •                    ***Contacts to be purchased separately see LS1.5 Accessories Section***

>
