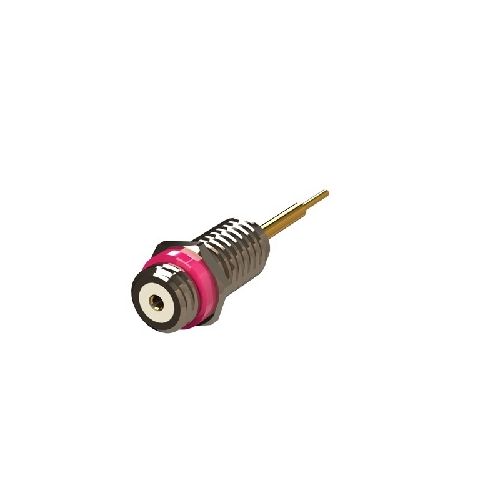

54-385-B3-12 | 54385B312 | Front Mount bulkhead Solder Post Jack
Front Mount bulkhead Solder Post Jack with Extended Contact (12mm)
| Complete Electronics Part No. | 54385B312 |
|---|---|
| Manufacturers Part No. | 54-385-B3-12 |
| Type | DIN 10 - 32 |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 12GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Return Loss -18.3 dB@12GHz
Mechanical Specification
RoHS3 Compliant
Mating Cycles 500
Weight 1.51g
Operating Temperature -55 to +155 Deg C
IP Rating (Mated) IP40
Materials
Centre Contact Beryllium Copper
Outer Contact Brass
Insulator PTFE
Centre Contact Plating Gold
Outer Contact Plating Nickel
Solder Tag Plating Tin
Pack Size 1
