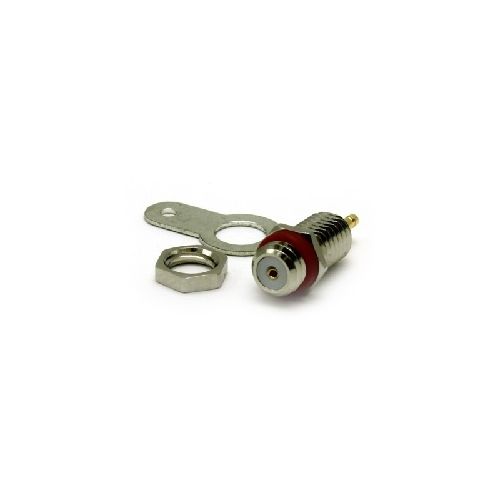

54-385-B3 | 54385B3 | Front Mount bulkhead Solder Post Jack
Front Mount bulkhead Solder Post Jack features a screw coupling
| Complete Electronics Part No. | 54385B3 |
|---|---|
| Manufacturers Part No. | 54-385-B3 |
| Type | DIN 10 - 32 |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss -18.3 dB@12GHz
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles 500
- Weight 1.87g
- Operating Temperature -55 to +155 Deg C
- IP Rating (Mated) IP40
Materials
- Centre Contact Beryllium Copper
- Outer Contact Brass
- Insulator PTFE
- Centre Contact Plating Gold
- Outer Contact Plating Nickel
- Solder Tag Plating Tin
- Pack Size 1
