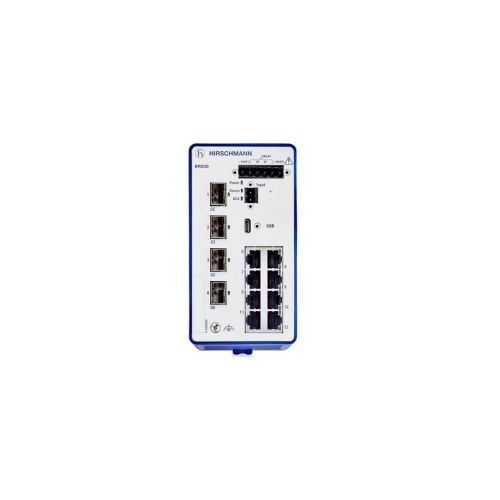

942170030 | BRS30-8TX/4SFP-HL | BOBCAT Ethernet Switch
Managed 12 port Fast-Ethernet-Switch, 8 x standard 10/100 BASE TX, RJ45, 4 x SFP 100/1000 Mbits, Operating voltage 2 x 12VDC.... 24V DC
| Complete Electronics Part No. | 942170030 |
|---|---|
| Manufacturers Part No. | 942170030 |
| Ethernet Product Type: | BRS30 |
| Total 10/100 (RJ45) Ports: | 8 |
| Total 100/1000 (TX) Ports: | 4 |
| Total Ethernet Ports: | 12 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS30-8TX/4SFP-HL
12 port Fast-Ethernet-Switch
Managed
Mounting: DIN rail
Fanless design
8 x standard 10/100 BASE TX, RJ45
4 x SFP 100/1000 Mbits
Operating voltage 2 x 12VDC.... 24V DC
Operating temperature 0ºC ... 60 ºC
Weight: 570g
Protection Class: IP30
Housing PC-ABS
Accessories available to order:-
AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
6-pin terminal block with screw lock (50 pieces) 943 845-013
2-pin terminal block with screwlock (50 pieces) 943 845-009
Industrial HiVision Network Management Software 943 156-xxx
