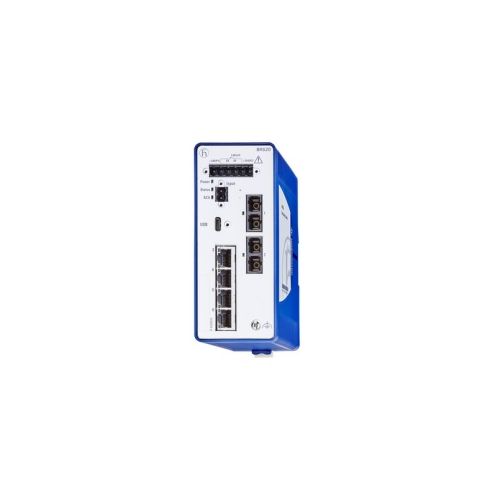

942170036 | BRS20-4TX/2FX-EEC-HL | BOBCAT Ethernet Switch
Managed 6 port Fast-Ethernet-Switch, uplink: 100BASE-FX, MM-SC, 4 x standard 10/100 BASE TX, RJ45, DIN Rail Mounting
| Complete Electronics Part No. | 942170036 |
|---|---|
| Manufacturers Part No. | 942170036 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 4 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 6 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | DC 24V/48V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-0600M2M2-TTCX99HHSESXX.X.XX
6 port Fast-Ethernet-Switch
uplink: 100BASE-FX, MM-SC
uplink: 100BASE-FX, MM-SC
4 x standard 10/100 BASE TX, RJ45
Operating voltage 2 x 24 to 48 VDC
Operating temperature -40ºC ... 70 ºC
Managed
Mounting: DIN rail
Fanless design
Weight: 420g
Protection Class: IP30
Housing Material: Plastic
Part Number: 942170036
Accessories available to order:-
AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
6-pin terminal block with screw lock (50 pieces) 943 845-013
2-pin terminal block with screwlock (50 pieces) 943 845-009
Industrial HiVision Network Management Software 943 156-xxx
