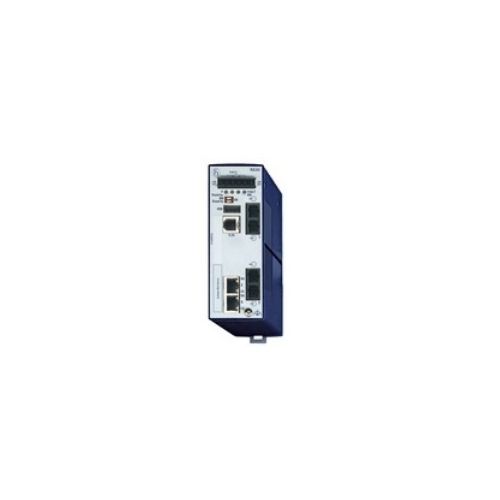

RS200400M2M2SDHEPH05.0 | Industrial Ethernet
4 Port Fast ETHERNET-switch, 2 x Uplink Port: 100BASE- FX, MM-SC, 2 x standard 10/100 BASE TX, RJ45, Software Layer 2 Enhanced
| Complete Electronics Part No. | RS200400M2M2SDHEPH05.0 |
|---|---|
| Manufacturers Part No. | RS200400M2M2SDHEPH05.0 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 2 |
| Total 100 Base Ports: | 2 |
| Total Ethernet Ports: | 4 |
| FX (Optical) Connector Type: | SC |
| FX (Optical) Cable Type: | Multi Mode (MM) |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS20-0400M2M2SDHEPH
Fast 4 port managed ETHERNET-switch
Ports: 4 x FE 4 ports in total;
Uplink Port: 100BASE-FX, MM-SC
Uplink Port: 100BASE- FX, MM-SC,
2 x standard 10/100 BASE TX, RJ45
Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
Current consumption at 48 V DC 161 mA
Operating temperature 0 ºC ... 60 ºC
Compact,
Industrial switch for DIN rail
Store-and-forward-switching
Fanless design,
Software Layer 2 Enhanced,
Dimensions (W x H x D) 47 mm x 131 mm x 111 mm
Weight 400 g
Protection class IP20
Accessories to order separately:
Rail power supply RPS 30, RPS 80 EEC or RPS 120 EEC,
Terminal cable,
Network management HiVision, auto-configuration adapter (ACA21-USB),
19″ installation frame
