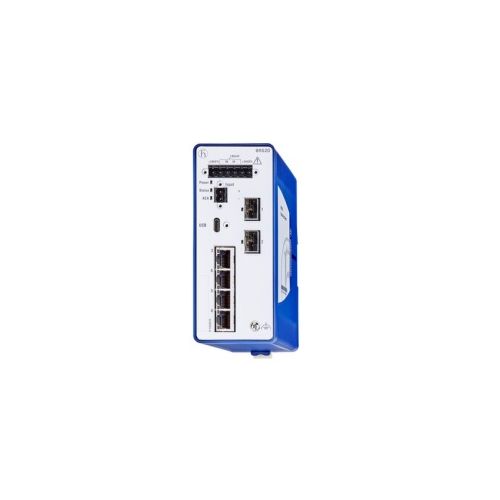

942170040 | BRS20-4TX/2SFP-EEC-HL | BOBCAT Ethernet Switch
Managed 6 port Fast-Ethernet-Switch, 4 x standard 10/100 BASE TX, RJ45, 2 x SFP (100Mbits), Operating voltage 2 x 12VDC.... 24V AC
| Complete Electronics Part No. | 942170040 |
|---|---|
| Manufacturers Part No. | 942170040 |
| Ethernet Product Type: | BRS20 |
| Total 10/100 (RJ45) Ports: | 6 |
| Total 100 Base Ports: | 2 |
| Total 100/1000 (TX) Ports: | 4 |
| Total Ethernet Ports: | 6 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS20-0600Z6Z6-TTCX99HHSEA
6 port Fast-Ethernet-Switch
- Managed
- Mounting: DIN rail
- Fanless design
- 4 x standard 10/100 BASE TX, RJ45
- 2 x SFP (100Mbits)
- Operating voltage 2 x 12VDC.... 24V AC
- Operating temperature -40ºC ... 70 ºC
- Weight: 420g
- Protection Class: IP30
- Housing Material: Plastic
- Accessories available to order:-
- AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
- 6-pin terminal block with screw lock (50 pieces) 943 845-013
- 2-pin terminal block with screwlock (50 pieces) 943 845-009
- Industrial HiVision Network Management Software 943 156-xxx
