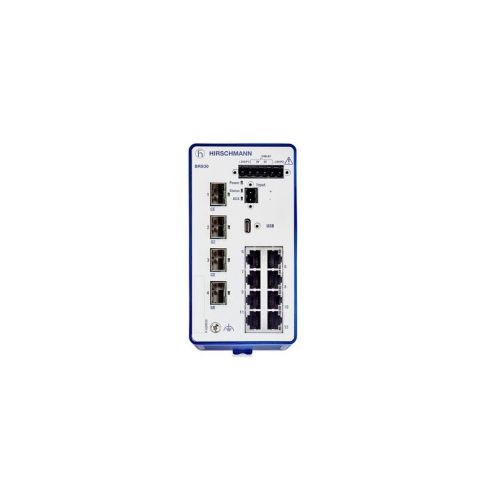

942170108 | BRS30-8TX/4SFP-SA | BOBCAT Ethernet Switch
Availability: Approximately 4 to 6 weeks
Managed 12 port Fast-Ethernet-Switch, 8 x standard 10/100 BASE TX, RJ45, 4 x SFP 100/1000 Mbits, Operating voltage 2 x 12VDC.... 24V DC
| Complete Electronics Part No. | 942170108 |
|---|---|
| Manufacturers Part No. | 942170108 |
| Ethernet Product Type: | BRS30 |
| Total 10/100 (RJ45) Ports: | 8 |
| Total 100/1000 (FX) Ports: | 4 |
| Total Ethernet Ports: | 12 |
| FX (Optical) Connector Type: | GE - SFP |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BRS30-0804OOOO-STCY99HHSEAXX.X.XX
12 port Fast-Ethernet-Switch
- Managed
- Mounting: DIN rail
- Fanless design
- 8 x standard 10/100 BASE TX, RJ45
- 4 x SFP 100/1000 Mbits
- Operating voltage 2 x 12VDC.... 24V DC
- Operating temperature 0ºC ... 60 ºC
- Weight: 570g
- Protection Class: IP30
- Housing PC-ABS
- Dimensions (WxHxD): 73mm x 138mm x 115mm
- Accessories available to order:-
- AutoConfiguration Adapter ACA22-USB-C (EEC) 942-239-001
- 6-pin terminal block with screw lock (50 pieces) 943 845-013
- 2-pin terminal block with screwlock (50 pieces) 943 845-009
- Industrial HiVision Network Management Software 943 156-xxx
