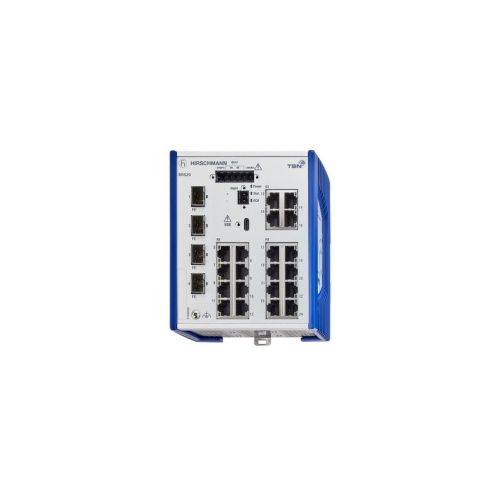

942170119 | BRS30-20TX/4SFP-2A | BOBCAT Ethernet Switch
Availability: Approximately 4 to 6 weeks
24 port Fast-Ethernet-Switch, managed, 20x 10/100BASE TX / RJ45; 4x Uplink100/1000Mbit/s SFP slots, fanless design
| Complete Electronics Part No. | 942170119 |
|---|---|
| Manufacturers Part No. | 942170119 |
| Ethernet Product Type: | BRS30 |
| Total 10/100 (RJ45) Ports: | 20 |
| Total 100/1000 (FX) Ports: | 4 |
| Total Ethernet Ports: | 20 |
| FX (Optical) Connector Type: | GE - SFP |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail |
| IP Rating: | IP30 |
Description
BBRS30-2004OOOO-STCY99HHSEAXX.X.XX
24 port Fast-Ethernet-Switch
- Managed
- Mounting: DIN rail
- Fanless design
- Enable real-time communication using TSN.
- 20 x standard 10/100 BASE TX, RJ45
- 4x 100/1000Mbit/s fiber SFP Slots
- Power Supply / Signaling Contact: 1 x plug in Terminal Block, 6 Pin
- Digital Input: 1 x plug in Terminal Block, 2 Pin
- Local Management: USB-C
- Operating voltage 2 x 12VDC.... 24V DC
- Operating temperature -40ºC ... 70 ºC
- Dimensions: 109 mm x 138 mm x 115 mm
- Weight: 1050g
- Protection Class: IP30
- Housing PC-ABS
Accessories available to order:-
- Auto Configuration Adapter ACA22-USB-C (EEC) 942-239-001
- 6-pin terminal block with screw lock (50 pieces) 943 845-013
- 2-pin terminal block with screwlock (50 pieces) 943 845-009
- Industrial HiVision Network Management Software 943 156-xxx
