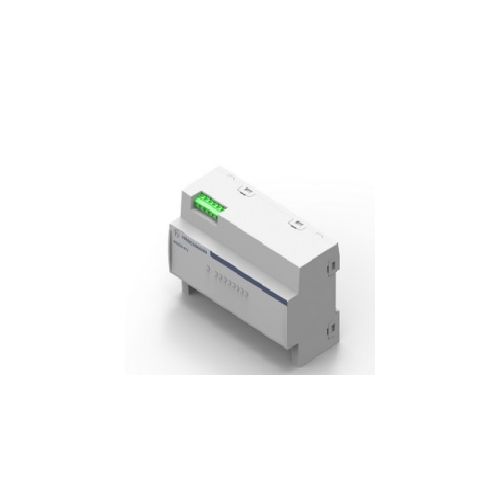

942307002 | BAS20-8TX-HV | Building Automation Switch
Unmanaged Ethernet Switch Range for Building Automation Applications, MDRC form factor.
| Complete Electronics Part No. | 942307002 |
|---|---|
| Manufacturers Part No. | 942307002 |
Description
BAS20-8TX-HV
Building Automation Switch
- Unmanaged
- Without PoE
- MDRC Form Factor
- Port type and quantity: 8x 10/100BASE TX / RJ45
- Power supply/signaling contact: 6 poles, Nominal cross section max. 1.5 mm², no signal contact
- Operating Voltage: 24 V DC..48V DC/ 24V AC
- Power consumption: 1.4 W
- Diagnostic functions: LEDs (power, link/activity status,POE)
- Operating temperature: -30-+60 °C
- Dimensions (WxHxD): 140 mm x 90 mm x 64 mm
- Weight: 250 g
- Mounting: DIN Rail
- Protection class: IP20
