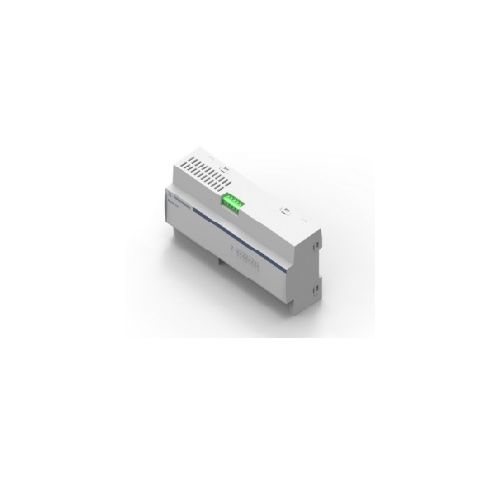

942307004 | BAS20-8TX-HV-110 | Building Automation Switch

Unmanaged Ethernet Switch Range for Building Automation Applications, MDRC form factor. With PoE
More Information
Complete Electronics Part No. 942307004
Manufacturers Part No. 942307004
Description

BAS20-8TX-HV-110

Building Automation Switch

  • Unmanaged
  • MDRC Form Factor
  • Port type and quantity: 8x 10/100BASE TX / RJ45 with PoE
  • 110W Power Budget
  • Power supply/signaling contact: 6 poles, Nominal cross section max. 1.5 mm², no signal contact
  • Operating Voltage: 100VAC..230VAC
  • Power consumption: 16 W (with 110 W PoE Load) / 2.5 W (without PoE)
  • Diagnostic functions: LEDs (power, link/activity status,POE)
  • Operating temperature: -30-+60 °C
  • Dimensions (WxHxD): 210 mm x 90 mm x 64 mm
  • Weight: 410 g
  • Mounting: DIN Rail
  • Protection class: IP20
